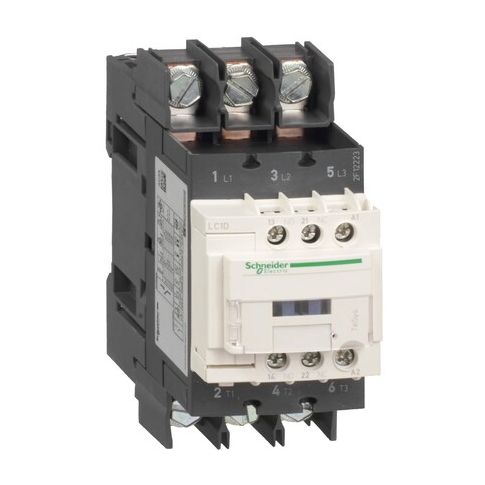

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, nonreversing, Screw MPN:LC1D40A6U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications. Suitable for use in industrial control systems, this 3-pole, nonreversing contactor operates with a 240V AC coil and features an auxiliary contact configuration of 1NC/1NO. Its compact design and Everlink Power Connections make it easy to integrate into existing systems, while its protective cover and IP20 front face rating provide added protection and durability. Ideal for use in manufacturing, process control, and other industrial settings, this contactor offers reliable performance and easy maintenance.
Top product features:
- IEC Magnetic Contactor is a 3-pole, nonreversing, electrically operated switching device.
- It operates with a 240 V AC coil and includes an auxiliary contact configuration of 1NC/1NO (mechanically linked).
- The device features Everlink Power Connections and a protective cover.
Top product applications:
- Motor Control
- Industrial Automation
- Power Distribution
The Schneider Electric IEC Magnetic Contactor is a 3-pole, nonreversing, electrically operated switching device rated for operation within specified electrical parameters. It operates with a 240 V AC coil as specified and includes an auxiliary contact configuration of 1NC/1NO (mechanically linked). This unit is part of the TeSys Deca LC1D family and includes Everlink Power Connections and a protective cover. It is compatible with mounting on plate or rail
- IP20 front face rating indicates level of enclosure protection.
- Coil Voltage: 240 V AC
- Control Circuit: AC 50/60 Hz
- Control Circuit Voltage: 240 V AC 50/60 Hz
- - Poles: 3P
- Contact configuration: 3 NO
- Auxiliary contact: 1NC/1NO (mechanically linked)
- - Reversing Capability: nonreversing
- - Rated Making Capacity: rated making capacity as specified under standard testing conditions
- - Rated Operational Current: rated operational currents within the specified categories and conditions
- - Rated Insulation Voltage: insulation voltage ratings according to standards
- actual performance may vary based on installation conditions
- - IP Rating: IP20 front face
- Protective Cover: Yes
- Includes: Everlink Power Connections
- - Mounting: Plate
- Rail
- Weight: 0.85 kg
- - Range/Series: TeSys Deca LC1D
- - Standards: EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 508
- CSA
- CCC
- GOST
- UL
- THIEC 60068-2-30
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.86
