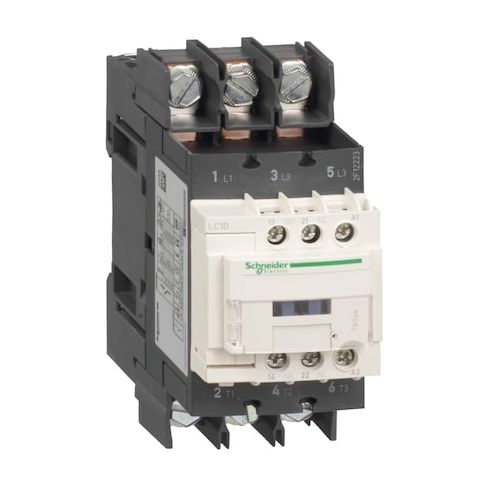

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Box Lug MPN:LC1D40A6GD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in motor control and resistive load applications. This 3-pole, non-reversing device features 1NC/1NO auxiliary contacts and a 125V DC coil, making it compatible with a wide range of systems. Its compact design and box lug terminal connections simplify installation and reduce space requirements. Suitable for use in industrial settings, the IEC Magnetic Contactor provides reliable and repeatable switching, reducing downtime and increasing productivity. It's an ideal choice for applications such as conveyor systems, pumps, and fans.
Top product features:
- The Schneider Electric IEC Magnetic Contactor controls power circuits in motor control and resistive load applications.
- It is a non-reversing device with 1NC/1NO auxiliary contacts.
- It features a 125 V DC coil compatible with box lug terminal connections.
Top product applications:
- Motor control applications
- Resistive load applications
- Control power circuits in industrial settings
The Schneider Electric IEC Magnetic Contactor is an electrically operated switch used to control power circuits in motor control and resistive load applications. It is a 3-pole, non-reversing device with 1NC/1NO auxiliary contacts and a 125 V DC coil, compatible with box lug terminal connections.
- Poles: 3
- - Auxiliary contacts: 2 (1NC/1NO)
- - Coil voltage: 125 V DC
- - Reversing: Non-Reversing
- - Connection: Box Lug
- - Mounting: Plate, Rail
- - Series: LC1D
- - IP rating: IP20
- - Dimensions (H x W x D): 122 mm x 55 mm x 120 mm
- - Net weight: 0.925 kg
- - Includes: Everlink Power Connections
- Protective Cover
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.01
