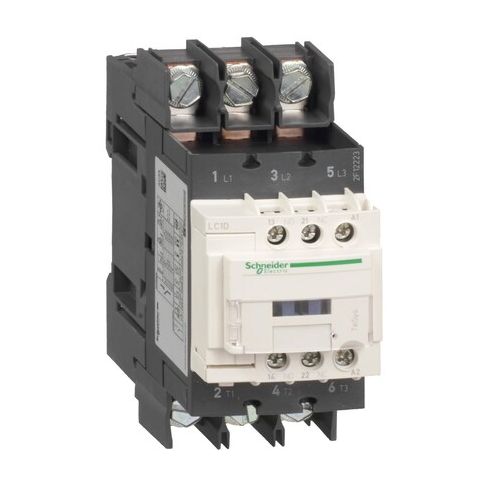

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Box Lug MPN:LC1D40A6B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. Compatible with 24V AC coil ratings, it offers a 1NC/1NO auxiliary contact arrangement and box-lug terminations for easy installation. Its non-reversing design ensures safe and controlled operation, while its compact size and standardized design make it ideal for panel installation. Suitable for use in a variety of industries, including manufacturing, HVAC, and commercial facilities, this magnetic contactor provides reliable and efficient switching solutions for applications that require precise control and safety.
Top product features:
- Three-pole operation allows for independent control of multiple circuits.
- Non-reversing functionality prevents accidental motor reversal.
- Box-lug terminations enable secure and easy electrical connections.
Top product applications:
- Motor control applications
- Resistive load applications
- Panel installation for standardized sizing and interchangeability
The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switch rated for operation within the specified voltage ranges. It is compatible with 24 V AC coil ratings and a 1NC/1NO auxiliary contact arrangement, with box-lug terminations. This device is suitable for use in motor control and resistive load applications within specified parameters and is suitable for panel installation where standardized sizing and interchangeability are needed.
- Poles: 3
- - Coil voltage: 24 V AC
- - Auxiliary contact form: 1NC/1NO
- - Reversing capability: non-reversing
- - Electrical connection: Box Lug
- - Mounting: Plate, Rail
- - IP rating: IP20
- - Net weight: 0.85 kg
- - Dimensions (H x W x D): 122 mm x 55 mm x 120 mm
- - Inrush VA: 140-160 VA
- - Hold VA: 13 VA at 60 Hz 20°C
- 15 VA at 50 Hz 20°C
- - Max operating voltage: Rated for operation up to 690 V AC and 300 V DC within specified limits
- - Rated insulation volts: Insulation rated for voltages up to 600/690 V as per specifications
- - Rated making capacity: Capable of handling currents up to these ratings under normal conditions
- does not guarantee performance under all circumstances
- - Shock resistance: Meets tested shock resistance levels according to standards
- does not imply safety under all impacts or misuse
- - Vibration resistance: Meets vibration testing standards
- does not guarantee performance in all vibrational environments
- - Fire rating: Complies with UL94V1 flammability standard
- does not indicate fireproof properties or safety guarantees
- - Standards: Conforms to these standards when used correctly within specified conditions
- - Inclusions: Everlink Power Connections
- Protective Cover included Items provided are as listed
- no implied additional features or warranties
- - Working height: Designed for use at high altitudes but does not guarantee optimal function beyond typical operational environments
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.86
