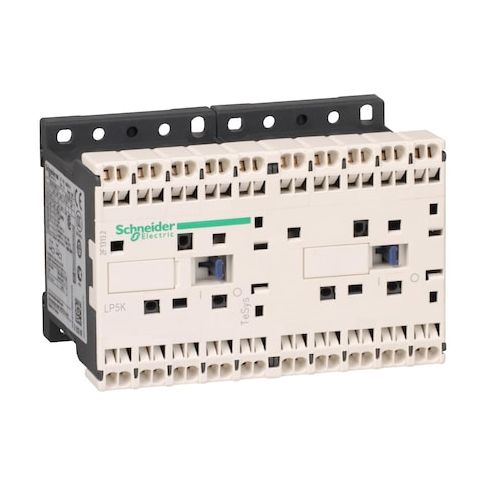

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Spring Type MPN:LP5K09013BW3
Free Shipping
In Stock
The Schneider Electric TeSys K IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. With its 24V DC coil and 3-pole reversing function, this contactor provides precise control and flexibility in a wide range of settings. Its spring-terminal connections and preassembled reversing power busbar ensure easy installation and reduced wiring time. Suitable for applications such as HVAC, water treatment, and conveyor systems, this contactor offers high reliability, low maintenance, and long lifespan, making it an ideal choice for industries seeking to optimize their operations and reduce downtime.
Top product features:
- Reversing function allows for the contactor to switch the direction of a motor or load
- Has 3 NO main contacts for reliable switching
- Includes a 1 NC auxiliary contact for instantaneous control and signaling
Top product applications:
- Motor Control
- Resistive Load
- Resistive Load Applications
Schneider Electric TeSys K IEC Magnetic Contactor is a 3-pole reversing contactor with a 24 V DC coil and a 1NC auxiliary contact. It uses spring-terminal connections and is preassembled with a reversing power busbar. Part of the TeSys LP5K range and TeSys family, it is suitable for use in motor control and resistive load applications when installed according to manufacturer instructions, with an IP20 enclosure and mounting on plate or rail. The unit supports 16 A resistive full-load current and 9 A inductive full-load current, and supports reversing function as specified
- proper installation and wiring are required for intended operation.
- Action: Reversing
- - Coil Voltage: 24 V DC
- - Poles / Contacts: 3P
- 3 NO main contacts
- 1 NC auxiliary contact (Instantaneous)
- - Device Presentation: Preassembled with reversing power busbar
- - Terminals: Spring Terminals
- - IP Rating: IP20
- - Mounting: Plate, Rail
- - Net Weight: 0.49 kg
- - Dimensions: Width 90 mm
- Height 58 mm
- Depth 57 mm
- - Rated Voltage: Power circuit 690 V AC 50/60 Hz
- Signalling circuit up to 690 V AC 50/60 Hz
- - Full-Load Currents: 16 A (Resistive)
- 9 A (Inductive)
- - Series / Range: LP5K / TeSys
- - Applications: Motor Control, Resistive Load
- - Operating Time: 10–20 ms (Coil De-energisation and NO opening), 30–40 ms (Coil energisation and NO closing)
- - Rated Insulation Voltage: 600/690 V
- - Auxiliary Contact: Instantaneous 1 NC
- - Connection Type: Spring Type
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.99
