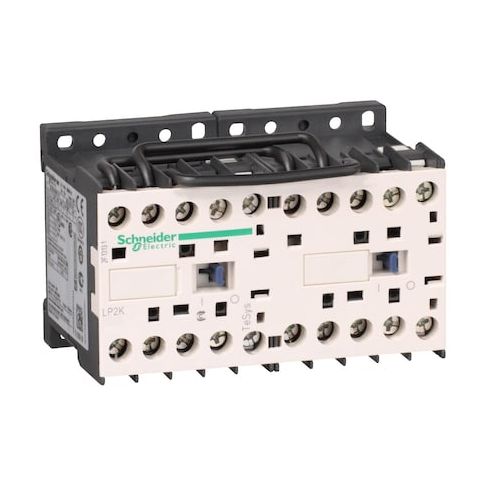

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K0910BD
Free Shipping
In Stock
The Schneider Electric TeSys K IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive load applications. With its 3-pole reversing action and 24V DC coil, this contactor is ideal for use in industrial settings where power circuits need to be switched. Its screw clamp terminals provide easy connections, while its IP20 rating ensures protection from dust and moisture. Suitable for use in a wide range of applications, including industrial automation, HVAC, and power distribution, this contactor offers a high making capacity of 110A and a compact design that fits easily on a plate or rail.
Top product features:
- The Schneider Electric TeSys K IEC Magnetic Contactor has a 3-pole reversing action.
- It has a 24V DC coil for operation.
- It features screw clamp terminals for electrical connection.
Top product applications:
- Motor control and resistive loads in industrial settings
- High-power electrical distribution systems
- Reversing motor control applications
The Schneider Electric TeSys K IEC Magnetic Contactor is a 3-pole reversing contactor with a 24 V DC coil and screw clamp terminals. Rated for switching power circuits within specified parameters for motor control and resistive loads, the TeSys K IEC Magnetic Contactor is part of the TeSys LP2K family.
- Coil Voltage: 24 V DC
- - Action: Reversing
- - Poles / Main Contacts: 3 poles
- 3 NO
- - Auxiliary Contacts: Instantaneous 1 NO
- - Electrical Connection: Screw Clamp Terminals
- - Rated Operational Voltage (Power Circuit): 690 V AC, 50/60 Hz
- - Rated Making Capacity: 110 A
- - IP Rating: IP20
- - Ambient Operating Temperature Range: -25 to 50 °C
- - Ambient Storage Temperature Range: -50 to 80 °C
- - Mounting: Plate, Rail
- - Net Weight: 0.48 kg
- - Product Family / Series: TeSys LP2K (TeSys range)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
