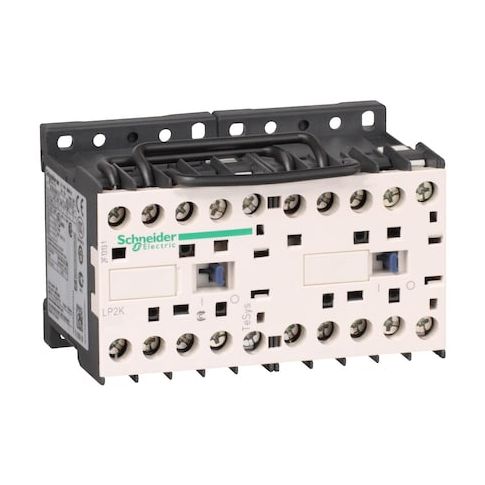

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Reversing, Screw Clamp MPN:LP2K0601BD3
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and power-circuit switching applications. Designed with a 3-pole, reversing configuration and 24V DC coil, this contactor is ideal for use in a variety of settings, including industrial machinery, HVAC systems, and renewable energy installations. With its screw clamp terminals and preassembled reversing power busbar, this contactor provides a convenient and space-saving solution. Its high operating speed and durability make it suitable for demanding applications, ensuring reliable and efficient operation in a range of industrial and commercial settings.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, reversing configuration.
- It features a 1NC auxiliary contact for instantaneous control.
- It uses screw clamp terminals for secure and easy connections.
Top product applications:
- Motor control
- Power-circuit switching
- Rail and plate mounting
The Schneider Electric IEC Magnetic Contactor is a 3-pole, reversing contactor (TeSys K, LP2K series) with a 24 V DC coil. It is configured with a 1NC auxiliary contact and is preassembled with a reversing power busbar. The device uses screw clamp terminals and is rated for use in motor control and power-circuit switching applications within specified parameters.
Key features
- - Coil voltage: 24 V DC
- - Poles: 3P
- Contact composition: 3 NO
- - Auxiliary contact: 1NC (Instantaneous 1 NC)
- - Device presentation: Preassembled with reversing power busbar
- - Terminals: Screw Clamp
- - IP rating: IP20
- - Mounting: Rail, Plate
- - Dimensions: Depth 57 mm, Height 58 mm, Width 90 mm
- Net weight 0.48 kg
- - Standards: EN/IEC 60947-4-1, UL 60947-4-1, CSA, CE, and others listed
- - Rated voltage: rated for operation at voltages up to 690 V AC within specified application conditions
- - Rated insulation voltage: rated for insulation at voltages up to 690 V under specified conditions
- - Motor power range: suitable for motors with power ratings as specified when operated within the recommended voltage ranges
- - Mechanical durability: tested according to industry standards
- actual lifespan may vary based on usage conditions
- - Electrical durability: tested according to industry standards
- actual performance may vary depending on operating environment
- - Operating speed: 3600 cycles per hour
- - Operating time: 30–40 ms (coil energisation and NO closing)
- 10 ms (coil de-energisation and NO opening)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.02
