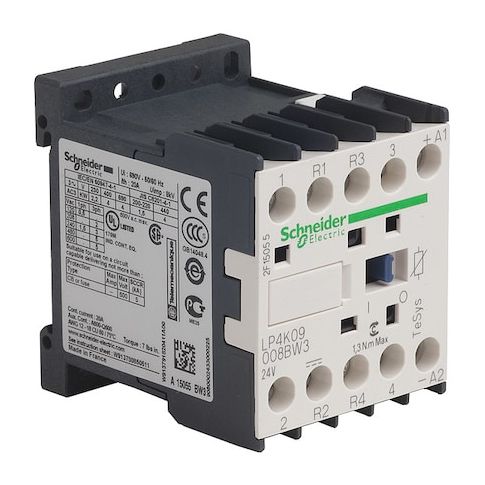

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp MPN:LP4K09008BW3
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in industrial and commercial applications. With its 4-pole configuration and 2NC/2NO auxiliary contacts, it provides a robust and flexible solution for various use cases. Its 24V DC coil and screw clamp terminals ensure easy installation and operation. Suitable for applications such as motor control, lighting, and HVAC systems, this contactor offers high-quality performance, meeting relevant industry standards and regulations. Its compact design and durable construction make it an ideal choice for a wide range of industries and settings.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 2NC/2NO auxiliary contacts for reliable control and monitoring of power circuits.
- It is designed for operation at 24 V DC coil voltage for flexibility in system design and implementation.
- The contactor is rated for operation with a making capacity of up to 110 A AC Power Circuit for efficient control of high-current loads.
Top product applications:
- Control of Power Circuits in Industrial Settings
- Use in Motor Control Circuits for Electric Motors
- Application in Power Distribution Systems for Lighting and Appliances
The Schneider Electric IEC Magnetic Contactor is a 4-pole, electrically operated switching device with 2NC/2NO auxiliary contacts and a 24 V DC coil, equipped with Screw Clamp terminals. It is rated for operation within the specified voltage ranges and intended for controlling power circuits in accordance with IEC standards.
- Poles: 4
- - Auxiliary contacts: 2NC/2NO
- - Coil voltage: 24 V DC
- - Terminal connection: Screw Clamp
- - Width x Height x Depth: 45 mm x 58 mm x 57 mm
- - Net weight: 0.235 kg
- - Mounts on: Plate, Rail
- - Series: LP4K
- - Rated voltage: up to 690 V AC (as specified)
- - Rated making capacity: up to 110 A (AC Power Circuit) under specified conditions
- - Full load current ratings: are based on resistive or inductive loads within standard testing conditions
- actual performance may vary depending on application
- - Impedance: value provided
- actual circuit impedance may differ based on installation specifics
- - Impulse withstand voltage: designed to meet impulse withstand specifications of up to 8 kV under test conditions
- - Rated insulation volts: 600/690 V
- - Standards: Meets relevant industry standards when properly installed and used according to manufacturer instructions
- - Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
- - Mechanical durability: 30 Mcycles
- - Operating speed: 3600 cycles per hr
- - Tightening torque: 0.8 to 1.3 Nm
- - Working height: 6561.68 ft
- - Mercury Free
- Toxic Heavy Metal Free
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.49
