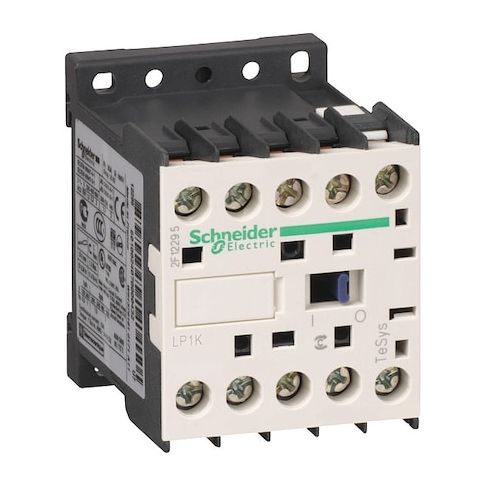

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP1K0910BD3
Free Shipping
In Stock
The TeSys K series IEC Magnetic Contactor from Schneider Electric is a reliable and efficient solution for controlling power circuits in various applications. Designed for use in industrial control systems, this 3-pole, 24V DC device features screw clamp terminals and a built-in bidirectional peak-limiting diode suppressor. Its non-reversing operation and high switching capacity make it ideal for use in applications such as motor control, lighting, and HVAC systems. With its compact design and robust construction, this contactor is perfect for use in industrial settings where reliability and efficiency are paramount. Suitable for a wide range of industries, including manufacturing and construction.
Top product features:
- The product has a built-in bidirectional peak-limiting diode suppressor.
- It is a 3-pole, non-reversing device.
- It has screw clamp terminals.
Top product applications:
- Industrial Automation Control Systems
- Motor Control Circuits for DC Motors
- Machine Tool Control Systems
The item is an IEC Magnetic Contactor from Schneider Electric (TeSys K series), configured as a 3-pole, 24 V DC coil, non-reversing device with screw clamp terminals and no auxiliary contacts. It is rated for operation within specified control system standards and load types. The unit is specified for operation in ambient temperatures from -25°C to 50°C (-13°F to 122°F) and has a maximum voltage rating of 690V AC for power circuits.
Key features
- - Coil voltage: 24 V DC
- built-in bidirectional peak-limiting diode suppressor
- - Poles and contacts: 3P
- 3 main contacts (3 NO)
- - Auxiliary contacts: None
- - Reversing: Non-Reversing
- - Maximum voltage (power circuit): 690 V AC
- - Currents: Full Load Amps (Resistive) 20 A
- (Inductive) 9 A
- - Frequency: 50/60 Hz
- - Mounting: DIN Rail and Plate
- Mounts on Plate and Rail
- - Terminals: Screw clamp
- - Enclosure/IP: No enclosure
- IP2X
- - Weight and dimensions: 0.225 kg
- Depth 2.24 in
- Height 2.28 in
- Width 1.77 in
- - Series/frame: TeSys K
- - Certifications: CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
- - Operating characteristics: 3600 cycles per hour
- Coil energisation and NO closing: 30–40 ms
- Coil de-energisation and NO opening: 10 ms
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.49
