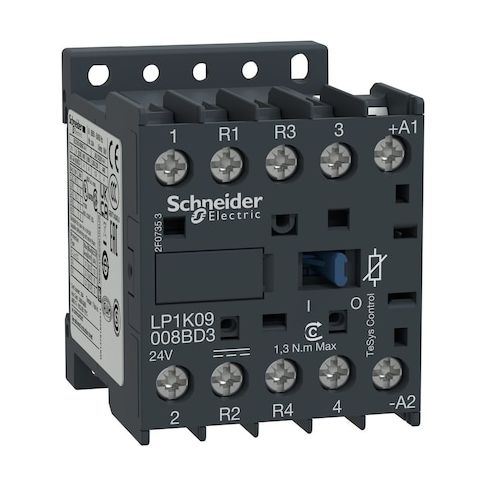

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp MPN:LP1K09008BD3
Free Shipping
In Stock
The Schneider LP1K IEC Magnetic Contactor is a versatile and reliable solution for controlling and switching resistive loads in a variety of applications, including industrial automation, HVAC, and power distribution systems. With a 2NC/2NO auxiliary contact configuration and screw clamp terminals, this contactor provides a secure and efficient connection. Its compact design and robust construction make it suitable for mounting on plates or rails, while its 690V AC rating ensures safe operation in high-voltage environments. Ideal for use in commercial and industrial settings, the LP1K contactor offers reliable switching and control for a wide range of applications.
Top product features:
- Operates from a 24 V DC coil
- Provides a 2NC/2NO auxiliary contact configuration
- Rated for use with resistive loads up to 20 A and inductive loads up to 9 A
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- High-Reliability Power Distribution
The item is an IEC Magnetic Contactor (LP1K series) with four poles and screw clamp terminals. It operates from a 24 V DC coil and provides a 2NC/2NO auxiliary contact configuration. Rated for use with resistive loads within specified parameters, it supports mounting on plate or rail and is rated for operation up to 690 V AC within specified conditions. Its approximate exterior dimensions are 45 mm wide, 57 mm deep, and 58 mm high, with a net weight of 0.225 kg.
- Coil voltage: 24 V DC
- - Poles: 4
- - Auxiliary contacts: 2NC/2NO
- - Terminal connection: Screw Clamp
- - Mounting: Plate, Rail
- - Rated for operation up to 690 V AC within specified conditions
- - Full Load Amps: Resistive 20 A
- Inductive 9 A
- - Fire rating: complies with these fire safety standards as tested and certified
- - Impulse withstand voltage: rated to withstand impulse voltages up to 8 kV under specified testing conditions
- - Series: LP1K
- - Overvoltage category: CAT III
- - Rated insulation voltage: 600/690 V
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.50
