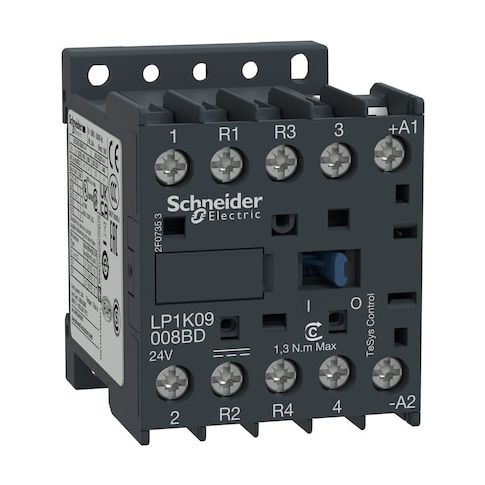

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Screw Clamp MPN:LP1K09008BD

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a resistive load application device with an auxiliary contact form of 2NC/2NO. It operates on a coil voltage of 24V DC and has control circuit voltage limits that are operational from 0.8 to 1.15 Uc (at 50°C) and drop-out from 0.1 to 0.75 Uc (at 50°C). The contactor, which is mercury-free and toxic heavy metal free, meets fire rating standards including UL94 V1, NF F16-101, and NF F16-102.

  Key features include:

• - Full Load Amps: Inductive at 9 A
• Resistive at 20 A
• - Impulse Withstand Voltage: Rated for operation within the specified impulse voltage range.
• - Mechanical Durability: Mechanical durability is rated for operation within the specified cycle count.
• - Mounting Options: Can be mounted on either plate or rail.
• - Number of Poles: Features four poles for electrical connection.
• - Operating Speed & Time: Operating speed and time are compatible within the specified ranges, subject to coil energisation/de-energisation and NO/NC closing/opening conditions.
• - Overvoltage Category & Rated Insulation Volts: Overvoltage category & rated insulation volts are in accordance with CAT III standards, compatibility may vary depending on specific usage circumstances.
• - Terminal Connection Type & Tightening Torque Range : Uses screw clamp as terminal connection type requiring tightening torque range between zero point eight to one point three Newton meter.
