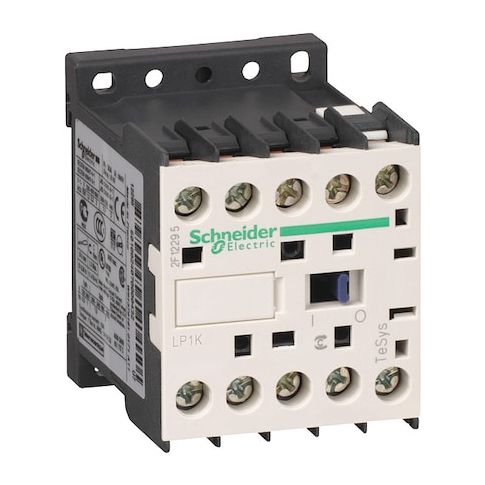

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Screw Clamp MPN:LP1K09004BD

• The Schneider Electric IEC Magnetic Contactor is a 4-pole, resistive-load switching device with a 24 V DC coil. It features 4 NO auxiliary contacts and screw clamp terminals, and is rated for operation within the specified voltage ranges. The unit belongs to the LP1K series, weighs 0.225 kg, and dimensions are 45 mm wide, 57 mm deep, and 58 mm high. It mounts on Plate or Rail, has a 25 A fuse rating, 8 kV impulse withstand, and a CAT III overvoltage category. Its electrical ratings include 20 A resistive and 6 A inductive full-load currents, with rated insulation of 600/690 V and rated voltage of 690 V AC. Operating times are 30–40 ms for coil energisation/NO closing and 10 ms for coil de-energisation/NO opening. The device is specified for Mercury Free and Toxic Heavy Metal Free construction and carries UL 94 V1 and NF F 16-101/16-102 fire ratings.

  - Coil voltage: 24 V DC

• - Poles / Auxiliary contacts: 4 poles
• 4NO
• - Terminal type: Screw Clamp
• - Rated voltage: 690 V AC
• - Full-load current: 20 A (resistive), 6 A (inductive)
• - Fuse rating: 25 A
• - Dimensions: 45 mm W x 57 mm D x 58 mm H
• - Net weight: 0.225 kg
• - Mounting: Plate, Rail
• - Series: LP1K
• - Standards: EN/IEC 60947-4-1, UL 60947-4-1, CE, CSA, etc.
• - Overvoltage category: CAT III
• - Impulse withstand: 8 kV
• - Rated insulation: 600/690 V
• - Making capacity: 110 A (AC Power Circuit)
• - Breaking capacity: 110 A @ 415–440 V
• 80 A @ 500 V
• 70 A @ 660–690 V
• - Operating speed: 3600 cycles per hour
• - Operating time: 30–40 ms (energisation/NO closing)
• 10 ms (de-energisation/NO opening)
• - Thermal amperage: 20 A (50°C power circuit)
• - Mechanical durability: 10 Mcycles
• - Environmental attributes: Mercury Free, Toxic Heavy Metal Free
• - Fire rating: UL 94 V1, NF F 16-101, NF F 16-102
• - Working height: 6561.68 ft
