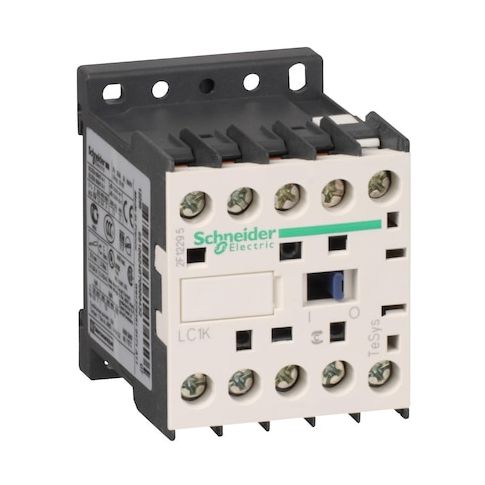

IEC Magnetic Contactor, 1NO, 48V AC, 3 P MPN:LC1K0610E7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device suitable for motor-control applications in various industries. Its 3-pole design with 1 normally open auxiliary contact and 3 normally open main contacts provides precise control and versatility. With a 48 V AC coil and a wide range of operating characteristics, this contactor is ideal for use in overvoltage category III environments. Its compact design and robust construction make it suitable for installation on rail or plate, while its screw clamp terminals ensure easy connection and maintenance. Ideal for use in industrial settings, this contactor offers reliable performance and long-lasting durability.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has three normally open main contacts and one normally open auxiliary contact.
- It uses screw clamp terminals for connection.
- The device supports mounting on rail or plate for flexible installation options.
Top product applications:
- Motor-control applications within specified parameters
- Industrial control systems requiring a 3-pole switching device
- High-voltage applications with power and signaling circuits rated up to 690 V AC
The Schneider Electric IEC Magnetic Contactor is a 3-pole switching device with 1 normally open auxiliary contact, operated by a 48 V AC coil. The device is suitable for motor-control applications within specified parameters
- it has three normally open main contacts and one normally open auxiliary contact. It uses screw clamp terminals and supports mounting on rail or plate, with power and signaling circuits rated up to 690 V AC.
Key features:
- - Coil voltage: 48 V AC
- control circuit: AC 50/60 Hz
- - Poles/contacts: 3 poles
- main contacts 3 NO
- auxiliary contact 1 NO (Instantaneous 1 NO)
- - The power and signaling circuits are rated for operation at voltages up to 690 V AC within specified conditions.
- - The device's making/breaking capacity is rated at 110 A under specified test conditions.
- - Durability ratings are provided based on standardized testing procedures.
- - Protection and mounting: IP2X
- mounting on rail and plate
- screw clamp terminals
- - Physical: height 58 mm
- width 45 mm
- depth 57 mm
- weight 0.18 kg
- - Operating characteristics: Operating times are approximate and depend on specific application conditions
- speed 3600 cycles per hour
- Suitable for use in overvoltage category III environments when installed according to applicable standards.
- - Range/Series: TeSys LC1K
- - Additional specs: ambient storage -50 to 80°C
- altitude up to 2000 m without derating
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.40
