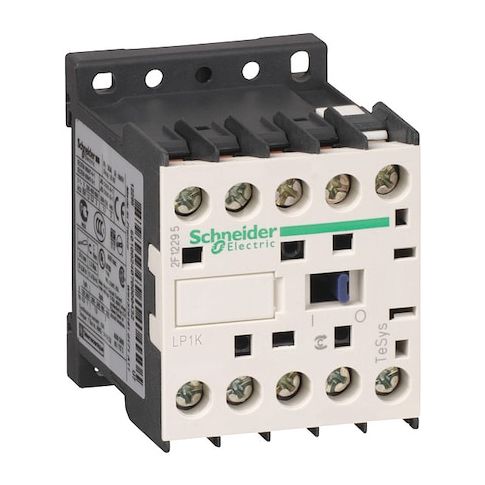

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw Clamp MPN:LP1K1201BD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in a variety of applications, including industrial automation, building management, and renewable energy systems. With its 3-pole, non-reversing design and 24V DC coil, it provides precise control and high performance in demanding environments. Its compact size and screw clamp terminal connections make it easy to integrate into existing systems, while its high making and breaking capacities ensure reliable operation. Suitable for use in a range of industries, including manufacturing, transportation, and energy, this contactor is a trusted choice for professionals seeking high-quality control solutions.
Top product features:
- Operates within a specified voltage range of 690 V AC
- Has a rated making capacity of 110 A for AC signalling and 144 A for AC power circuits
- Closes the normally open (NO) contact in 30-40 ms upon coil energisation
Top product applications:
- Motor Control Circuit
- Industrial Automation Systems
- Power Distribution Panels
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil and no auxiliary contacts. Rated for operation within the specified voltage ranges, it uses an IEC-style coil-and-contact mechanism. It belongs to the TeSys series.
- Coil voltage: 24 V DC
- - Poles: 3
- - Auxiliary contacts: No Auxiliary Contacts
- - Reversing: Non-Reversing
- - Terminal connections: Screw Clamp
- - Mounting: DIN Rail, Plate
- - Frame/Series: TeSys
- - Maximum voltage rating: 690 V AC
- - Frequency: 50/60 Hz
- - Full Load Amps: Resistive 20 A
- Inductive 12 A
- - Rated making capacity: 110 A (AC Signalling)
- 144 A (AC Power Circuit)
- - Rated breaking capacity: 110 A @ 440 V
- 80 A @ 500 V
- 70 A @ 660–690 V
- - Impulse withstand voltage: 8 kV
- - Standards: CSA
- UKCA
- UL Listed
- - Mechanical durability: 10 Mcycles
- - Dimensions (H×W×D): 2.28 in × 1.77 in × 2.24 in
- - Net weight: 0.225 kg
- - Maximum operating temperature: 122°F
- - Minimum operating temperature: -13°F
- - Enclosure: No Enclosure
- - Embedded surge suppressor: No
- - Insulation resistance: Greater Than 10 MΩ (Signalling Circuit)
- - Insulation voltage: 600/690 V
- - Operating time: 30–40 ms (coil energisation and NO closing)
- 10 ms (coil de-energisation and NO opening)
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.48
