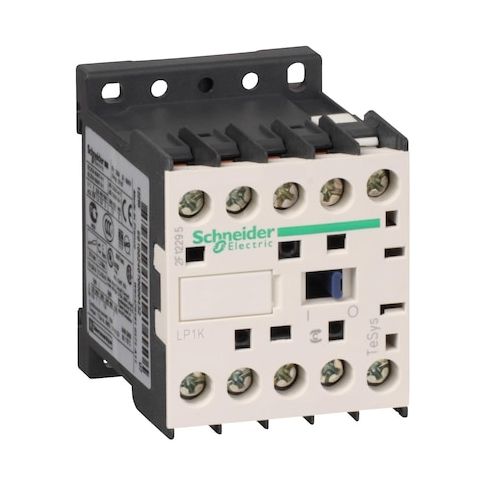

IEC Magnetic Contactor, 4NO, 12V DC, 4 P, Screw Clamp MPN:LP1K12004JD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for various industrial applications. Suitable for rail or plate mounting, this four-pole contactor features 4NO auxiliary contacts and a 12V DC coil. It's ideal for use in AC-1 duty and can withstand a range of operating conditions, including temperatures from -25 to 50°C. The contactor's compact design and screw clamp terminals make it easy to integrate into existing systems, while its high durability and long lifespan ensure minimal downtime and maintenance. Perfect for use in control panels, machines, and equipment, this contactor provides reliable operation and peace of mind.
Top product features:
- The product has four normally open auxiliary contacts (4NO) to provide additional control and functionality.
- The product is designed for AC-1 duty, allowing it to handle a wide range of applications.
- The product has screw clamp terminals for easy and secure connections.
Top product applications:
- Motor control circuits
- Power distribution units
- Power supplies
The Schneider Electric IEC Magnetic Contactor is a four-pole, 4NO contactor with a 12 V DC coil and screw clamp terminals. It belongs to the TeSys LP1K family and is rated for operation within the specified voltage ranges. The device is compatible with rail or plate mounting methods and measures 58 mm high, 45 mm wide, and 57 mm deep, with a net weight of 0.225 kg. It includes four normally open auxiliary contacts (4NO) and is intended for use in AC-1 duty.
Key features
- - Coil voltage: 12 V DC
- - Poles/contacts: 4P, 4 NO (AC-1 utilization)
- - Auxiliary contacts: 4 NO
- - Terminals: screw clamp
- - Power-circuit ratings: rated for operation within the specified voltage ranges
- - Full-load currents: rated for operation within the specified current ranges under resistive and inductive loads
- - Rated making capacity: rated according to applicable standards and specifications
- - Icw (short-time withstand): conforms to standard testing conditions, not a guarantee of performance under all circumstances
- - Operating time: typical operating times based on design specifications but not guaranteed under all conditions
- - Impulse withstand: tested according to relevant standards, but does not imply immunity from all transient events
- - Protection: IP2X
- - Ambient operation/storage: -25 to 50°C / -50 to 80°C
- - Mechanical durability: 10 Mcycles
- - Electrical durability: 0.3 Mcycles at 20 A AC-1 <= 690 V
- - Range/Series: LP1K / TeSys
- - Standards: EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
- - Fuse rating: 25 A (power circuit)
- - Dimensions and mounting: 58 mm H x 45 mm W x 57 mm D
- suitable for rail or plate mounting
- - Weight: 0.225 kg
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.49
