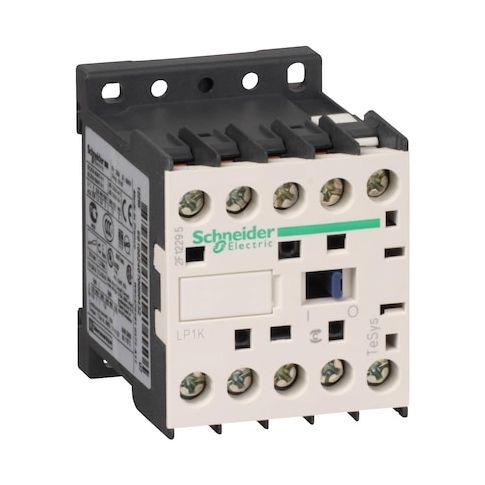

IEC Magnetic Contactor, 4NO, 24V DC, 4 P, Screw Clamp MPN:LP1K12004BD

• The Schneider Electric IEC Magnetic Contactor (4NO, 24V DC, 4P, Screw Clamp) is an IEC-style, electrically operated switch used to control power circuits in resistive-load applications. It features a 24 V DC coil, four poles, and four normally-open auxiliary contacts, with screw clamp terminals. The unit is suitable for plate or rail mounting and measures 45 mm wide by 58 mm high by 57 mm deep, weighing 0.225 kg. It operates within ambient temperature ranges of -25 to 50°C and can be stored within temperature ranges of -50 to 80°C. Rated for operation at voltages up to 690 V AC

• rated operational current: 20 A (≤ 690 V AC, AC-1)
• making capacity: 144 A at 690 V.

  - Coil voltage: 24 V DC

• - Poles/contacts: 4P
• Pole contact composition 4 NO
• Auxiliary contacts: 4 NO
• - Terminals: Screw clamp
• - Mounting: Plate, Rail
• - Application: Resistive Load
• - Rated voltage / insulation: 690 V AC
• Rated insulation 600/690 V
• - Currents: Ie rated operational current 20 A (≤ 690 V AC, AC-1)
• full-load resistive 20 A
• full-load inductive 12 A
• - Making capacity: 144 A (AC Power Circuit)
• - Durability: Mechanical 10 Mcycles
• Electrical 0.3 Mcycles at 20 A AC-1 ≤ 690 V
• - Operating conditions: Ambient operation -25 to 50°C
• storage -50 to 80°C
• IP2X
• operating altitude up to 2000 m
• - Operating time: 30-40 ms (coil energisation and NO closing)
• 10 ms (coil de-energisation and NO opening)
• - Standards: EN/IEC 60947-4-1
• UL 60947-4-1
• CSA
• CE
• UKCA
• etc.
• - Series/Range: LP1K, TeSys
• - Fuse: 25 A fuse
• Associated fuse rating: 25 A gG at ≤ 440 V (power circuit)
• 25 A aM (power circuit)
