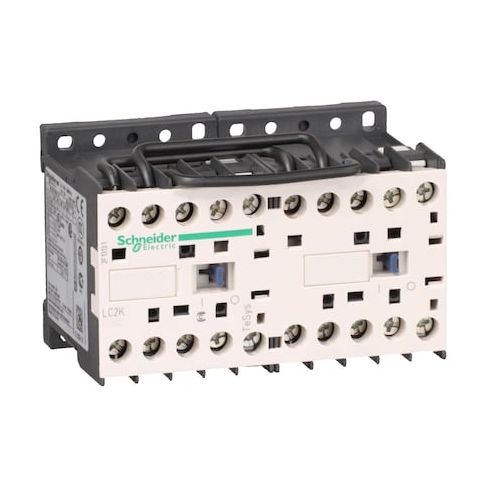

IEC Magnetic Contactor, 1NO, 48V AC, 3 P, Reversing, Screw Clamp MPN:LC2K1210E7
Free Shipping
In Stock
The TeSys K LC2K IEC Magnetic Contactor is a reliable and efficient solution for power circuit control applications. Suitable for use in industrial settings, it provides reversing functionality with a 3-pole design and 1 NO auxiliary contact. Coil-powered by 48V AC, this contactor can handle high current loads and is compatible with a wide range of voltage and current ranges. Ideal for use in power circuits up to 690V AC, it supports operation at 50/60 Hz and is designed for use in harsh environments. Perfect for applications such as motor control, lighting, and HVAC systems, it offers high durability and reliability.
Top product features:
- Reversing functionality allows for easy switching of power direction
- Three-pole design enables operation of three-phase power circuits
- Instantaneous 1 NO auxiliary contact provides a fast and reliable signal output
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Power Distribution Panels
The item is an IEC Magnetic Contactor (reversing) with 3 poles and a 1 NO auxiliary contact. It is coil-powered by 48 V AC and rated for operation within specified load types. The device uses screw clamp terminals and is compatible within the specified voltage and current ranges
- it can be mounted on plate or rail, and belongs to Schneider Electric’s TeSys K LC2K range (Product Name: TeSys K). It is rated for power circuits up to 690 V AC and supports operation at 50/60 Hz.
- Coil voltage: 48 V AC
- - Action: Reversing
- - Poles: 3P
- Pole contact configuration: 3 NO
- - Auxiliary contact: Instantaneous 1 NO
- - Mounting: Plate, Rail
- - Electrical connection: Screw Clamp Terminals
- - IP rating: IP20
- - Ambient operation temperature: -25 to 50°C
- - Ambient storage temperature: -50 to 80°C
- - Rated voltage (power circuit): 690 V AC 50/60 Hz
- - Rated insulation voltage: 600/690 V
- - Rated making capacity: 144 A @ 690 V (AC Power Circuit)
- 110 A (AC Signalling Circuit)
- - Full load current: Inductive 12 A
- Resistive 20 A
- - Mechanical durability: 5 Mcycles
- - Short-time withstand current: up to 115 A (Power Circuit) and 110 A (Signalling Circuit)
- - Inrush VA: 30 VA
- - Hold VA: 4.5 VA
- - Net weight: 0.39 kg
- - Dimensions: Width 90 mm
- Height 58 mm
- Depth 57 mm
- - Range/Series: TeSys
- LC2K
- - Product type: Reversing contactor
- - Fire rating: UL 94 V1
- NF F 16-101
- NF F 16-102
Additional Information
- Country of Origin: FR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.81
