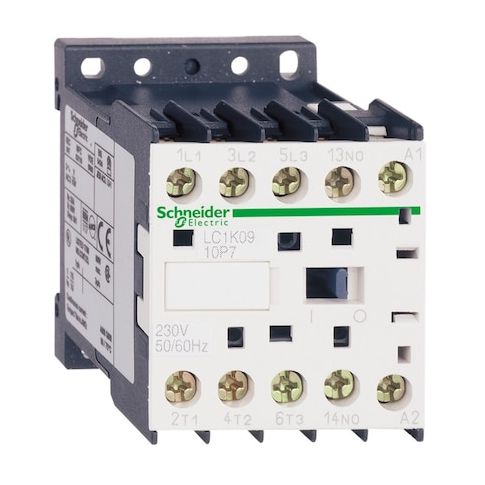

IEC Magnetic Contactor, 1NC, 230V AC, 3 P, Screw Clamp MPN:LC1K0901P7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, coil-operated switch with a 230 V AC control circuit. It is rated for operation within specified load types (motor control, resistive loads) and includes one normally closed auxiliary contact (instantaneous). The device uses screw-clamp terminals and is part of the TeSys range.

  - Coil Voltage: 230 V AC

• - Poles: 3
• - Auxiliary Contact: one normally closed auxiliary contact (instantaneous)
• - Terminals: Screw Clamp
• - Applications: motor control, resistive loads
• - Control Circuit Type: AC 50/60 Hz
• - Rated Operational Voltage (Power Circuit): rated for operation within specified voltage ranges (up to 690 V AC, ≤ 400 Hz)
• - Rated Operational Current: 9 A (AC-3/AC-3e at ≤ 440 V)
• 20 A (AC-1 at ≤ 690 V)
• - Motor Power Ratings: motor power ratings are based on standard testing conditions and should be verified in actual application
• - Impulse Withstand Voltage: withstands impulse voltages up to 8 kV as per specifications
• - Overvoltage Category: CAT III conforms to standards per applicable regulations
• - Dimensions: 45 mm W x 57 mm D x 58 mm H
• - Range: TeSys
• - Mechanical Durability: 10 Mcycles
• - Electrical Durability: 1.3 Mcycles (AC-3 ≤ 440 V)
• 0.16 Mcycles (AC-1 ≤ 690 V)
• 0.02 Mcycles (AC-4 ≤ 440 V)
