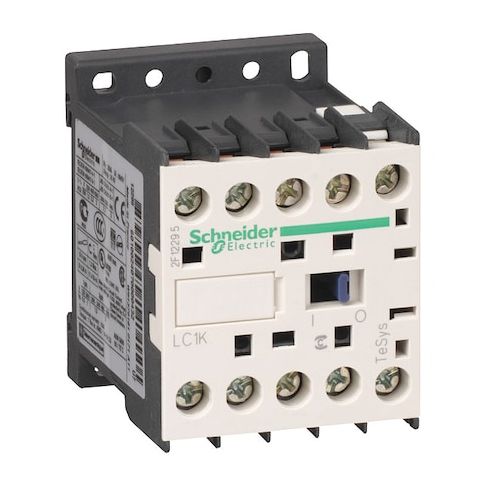

IEC Magnetic Contactor, 1NO, 220V AC, 3 P, Screw Clamp MPN:LC1K0610M7

• The Schneider Electric IEC Magnetic Contactor is a TeSys LC1K series, 3-pole device with 1 normally open auxiliary contact and a 220 V AC coil. It switches power circuits in motor control applications and is configured with three normally open main contacts and one normally open auxiliary contact. The unit is rated for operation within the specified voltage ranges (up to 690 V AC) and is rated for use within the specified utilization categories (AC-3, AC-3e, and AC-4).

  - Coil Voltage: 220 V AC

• - Poles / Main Contacts: 3 poles
• 3 NO
• - Auxiliary Contacts: 1 NO (Instantaneous 1 NO)
• - Terminal Connection: Screw Clamp
• - Series: LC1K
• - Rated Voltage (Power Circuit): Up to 690 V AC
• Control Circuit: 220–230 V AC 50/60 Hz
• - Mounting: Rail and Plate (Mounts On: Plate, Rail)
• - IP Rating: IP2X
• - Overvoltage Category: CAT III
• - Weight: 0.18 kg
• - Dimensions: Width 45 mm
• Height 58 mm
• Depth 57 mm
• - Rated Making Capacity: 110 A
• - Rated Insulation Voltage: Power circuit 600/690 V
• Signalling circuit 690 V
• - Utilisation Category: AC-3, AC-3e, AC-4
• - Mechanical Durability: 10 Mcycles
• - Electrical Durability: 1.3 Mcycles (6 A, AC-3, <440 V)
• - Rated Short-Time Withstand Current: 90 A (power circuit, 1 s) to 20 A (power circuit, 15 min)
• 80–110 A (signalling circuit, various short durations)
• - Inrush VA: 30 VA
• - Inrush Power: 30 VA
• - Hold-In Power Consumption: 4.5 VA
• - Operating Speed: 3600 cyc/h
• - Operating Time: 10–20 ms (coil energisation and NO closing
• coil de-energisation and NO opening)
