IEC Magnetic Contactor, 1NC/1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:LC1D256F7
Free Shipping
In Stock

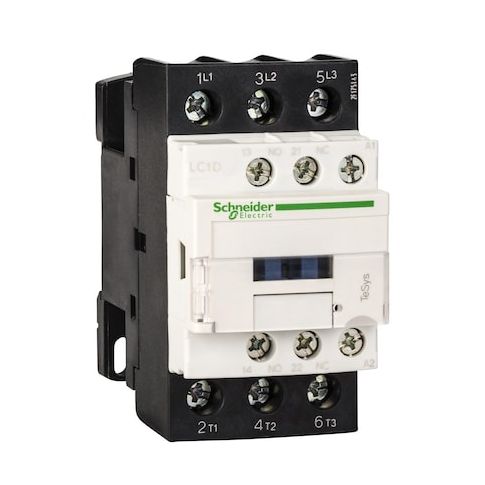

The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in various applications. Designed for motor control and resistive loads, this 3-pole, non-reversing contactor features a 110V AC coil and 1NC/1NO auxiliary contacts. Its compact dimensions and screw-terminal connections make it easy to integrate into existing systems. With a protective cover and IP20 ingress protection rating, this contactor provides reliable performance in harsh environments. Suitable for use in industrial automation, manufacturing, and commercial settings, the LC1D series contactor offers a cost-effective and efficient solution for controlling power circuits.
Top product features:
- Operates at currents up to 40 A under specified conditions
- Features a 110 V AC coil for control of power circuits
- Includes 1NC/1NO auxiliary contacts for control and monitoring purposes
Top product applications:
- Motor control
- Resistive load control
- Power circuit control
The Schneider Electric IEC Magnetic Contactor is a 3‑pole, non‑reversing, electrically operated switch used to control power circuits. It features a 110 V AC coil and 1NC/1NO auxiliary contacts, with screw-terminal connections. The LC1D series unit is designed for motor control and resistive loads, and it includes a protective cover with an IP20 ingress protection rating. Its compact dimensions are 45 mm wide, 85 mm high, and 92 mm deep, with a net weight of 0.37 kg. Rated for operation within the specified voltage ranges, it is designed to operate at currents up to 40 A under specified conditions and is mountable on plate or rail.
- Poles: 3
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.96
