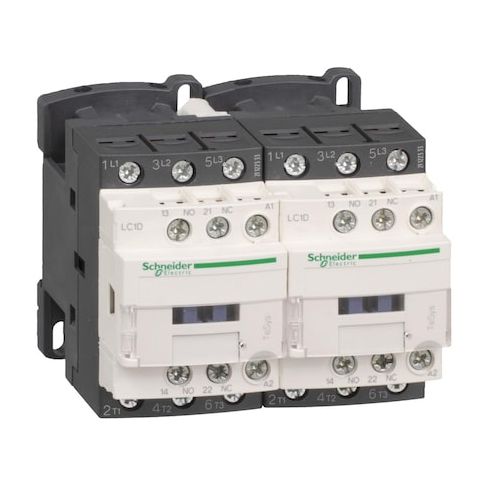

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Reversing, Screw Clamp MPN:LC2D09U7
Free Shipping
In Stock
The Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor is a versatile and reliable solution for motor control and resistive load applications. Suitable for use in a variety of settings, including industrial and commercial environments, this 3-pole reversing contactor provides efficient and safe control of electrical circuits. With its screw clamp terminals and protective cover, it offers easy installation and maintenance. Its compact design and high-quality construction make it an ideal choice for applications where space and reliability are crucial. Perfect for use in power distribution, motor control, and automation systems.
Top product features:
- The product has a reversing action, allowing for control of a motor in both forward and reverse directions.
- It has 3 main contacts and 4 auxiliary contacts, including 1NC/1NO per group, for flexible control circuit configurations.
- The product features screw clamp terminals for both power and control circuits, providing a secure and easy-to-use connection method.
Top product applications:
- Motor control applications
- Resistive load applications
- General industrial control applications
The Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor is a 3-pole reversing contactor (1NC/1NO auxiliary contacts) with a 240 V AC coil. It is preassembled with a reversing power busbar and uses screw clamp terminals for both power and control circuits. Suitable for use in motor control and resistive load applications within specified voltage ranges, it is rated for operation within the specified voltage ranges (up to 690 V AC / 300 V DC). It features a front face conforming to IP20 protection standards
- includes a protective cover. The unit is part of the TeSys Deca range, in the LC2D series, and measures 90 mm wide, 86 mm deep, and 77 mm high, with a net weight of 0.687 kg.
Key features:
- - Action: Reversing
- - Poles: 3 (3P)
- Main contacts: 3 NO
- - Auxiliary contacts: 4 total
- 1NC/1NO per group
- mechanically linked 1 NO + 1 NC
- - Coil voltage and technology: approximately 240 V AC
- compatible with standard control systems within this range
- - Terminals: Screw Clamp (power and control circuits)
- - Protective features: Protective cover included
- IP20 front face
- - Mounting: Designed for mounting on compatible rails or plates per installation instructions
- - Range/series: TeSys Deca
- LC2D
- - Dimensions/weight: Width 90 mm
- Depth 86 mm
- Height 77 mm
- 0.687 kg
- - Operating temperature: Intended for operation within the specified temperature range when installed properly
- - Rated voltages: Power circuit up to 690 V AC / 300 V DC
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 18 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.81
