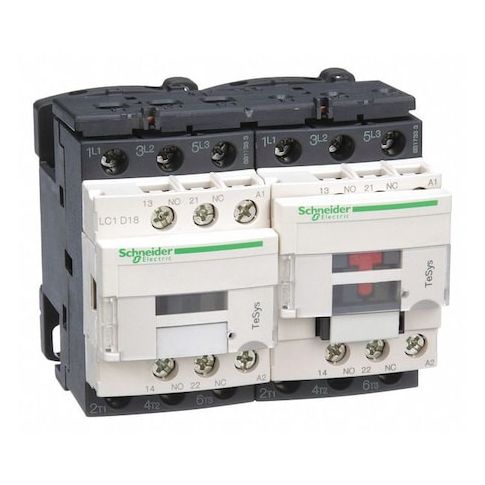

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D18G7

• The Schneider Electric IEC Magnetic Contactor (TeSys Deca) is a three-pole, reversing-contact actuator designed to switch power circuits. It has a coil rated at 120 V AC within specified operational parameters and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. The device is rated for operation with motor control and resistive loads and features screw clamp terminals, does not include a built-in surge suppression feature, and no enclosure. It complies with IEC standards (Note: Compliance does not imply safety or performance guarantees) and can be mounted on DIN rail or a plate, with a maximum voltage rating of 690 V AC and an operating frequency of 50/60 Hz. Its compact 3-pole configuration is part of the TeSys Deca family, and the assembly carries a protective cover and auxiliary contacts.

  - Action: Reversing

• - Application: Motor Control, Resistive Load
• - Coil Voltage: 120 V AC
• - Poles and auxiliary contacts: 3 poles
• 1NO/1NC auxiliary contacts (Includes Auxiliary Contacts: Yes)
• - Coil/Contact configuration: 1NC/1NO auxiliary form
• - Contactor style and series: IEC
• TeSys Deca
• - Maximum voltage and frequency: 690 V AC
• 50/60 Hz
• - Electrical ratings: Full Load Amps – Resistive 32 A
• Inductive 18 A
• - Electrical connection: Screw Clamp Terminals
• - Enclosure/IP and mounting: IP20
• No Enclosure
• Mounting on DIN Rail, Plate
• - Physical dimensions and weight: Depth 3.39 in
• Height 3.03 in
• Width 3.54 in
• Net Weight 0.707 kg
• - Fire rating: UL 94 V1
• - Included accessories: Protective Cover Yes
