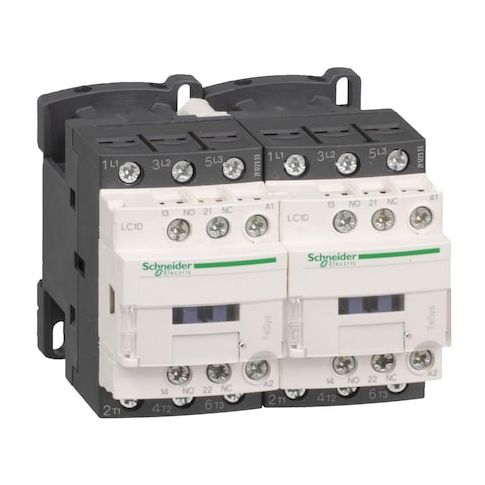

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Reversing, Screw Clamp MPN:LC2D18B7

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a 3-pole, reversing-type device with a 24 V AC coil and 1NC/1NO auxiliary contacts. Rated for switching power circuits within specified parameters

• compatible with motor control and resistive load applications. The unit uses screw clamp terminals and supports mounting on plate or rail, aligning with LC2D-series design.

  - Action: Reversing

• - Poles: 3
• - Auxiliary Contacts: 1NC/1NO
• - Coil Voltage: 24 V AC
• - Electrical Connection: Screw Clamp Terminals
• - Mounting: Plate, Rail
• - Series: LC2D
• - IP Rating: IP20
• - Includes Protective Cover: Yes
• - Rated Voltage: 690 V AC, 300 V DC
• - Net Weight: 0.707 kg
• - Dimensions: Width 90 mm
• Height 77 mm
• Depth 86 mm
• - Fire Rating: UL 94 V1
• - Shock Resistance: 15 G (Closed), 10 G (Open)
• - Vibration Resistance: 4 G (Closed), 2 G (Open)
