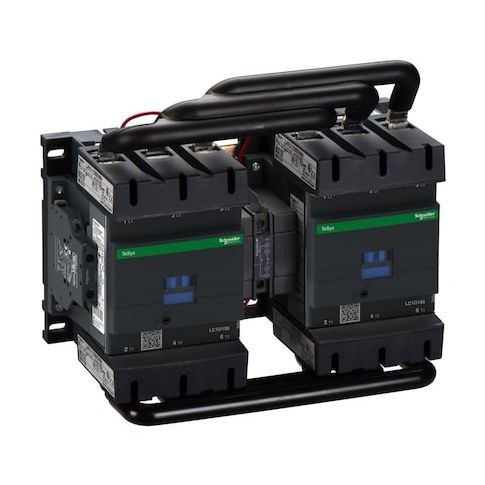

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D150G7
Free Shipping
In Stock
The Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor is a versatile and reliable solution for motor control and resistive load applications. Its 3-pole reversing design allows for flexible operation, while the 120V AC coil ensures efficient power management. The unit's 1NC/1NO auxiliary contacts provide additional functionality, and the screw clamp terminals offer easy connectivity. Suitable for use in a variety of industries, including manufacturing, HVAC, and water treatment, this contactor is ideal for applications requiring high reliability and low maintenance. Its compact design and IP20 enclosure standards make it a convenient choice for space-constrained installations.
Top product features:
- It has 1NC/1NO auxiliary contacts for additional control and monitoring capabilities.
- It includes a built-in bi-directional peak limiting diode suppressor for coil protection.
- It features a reversing power busbar for simplified motor control and load management.
Top product applications:
- Motor control
- Resistive loads
- Rail or plate mounting
Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor is a 3-pole reversing contactor with a 120 V AC coil. It includes 1NC/1NO auxiliary contacts and screw clamp terminals, and is preassembled with a reversing power busbar. The unit is rated for operation with motor control and resistive loads within specified parameters and is compatible with rail or plate mounting as per installation guidelines, conforming to IP20 enclosure standards (not a guarantee of safety).
- Action: Reversing
- - Coil Voltage: 120 V AC
- - Poles: 3
- - Auxiliary Contact Form: 1NC/1NO
- - Auxiliary Contacts Type: Mechanically linked 1 NO + 1 NC
- - Terminals: Screw Clamp
- - Device Presentation: Preassembled with reversing power busbar
- - Mounting: Rail
- Plate
- - IP Rating: Conforms to IP20 enclosure standards (not a guarantee of safety)
- - Net Weight: 6.4 kg
- - Dimensions (W/ D/ H): 266 mm x 148 mm x 158 mm
- - Inrush Voltage Range: Specified according to product specifications
- - Impedance: 0.6 mΩ
- - Rated Making Capacity: Rated for making capacity under specified conditions
- actual performance may vary based on application
- - Series: LC2D
- - Certifications: BV
- CCC
- CSA
- DNV
- GL
- RINA
- UL
- EAC
- UKCA
- - Coil Protection: Built-In Bi-Directional Peak Limiting Diode Suppressor
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 14.63
