IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Reversing, Screw Clamp MPN:LC2D115G7
Free Shipping
In Stock
The Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor is a reliable and efficient solution for various applications requiring a 3-pole reversing contactor. With a 120 V AC coil and screw clamp terminals, this contactor is ideal for use in control panels, machines, and systems that require a high level of reliability and flexibility. Its reversing function allows for easy switching between two states, making it a popular choice for applications such as conveyor systems, pumps, and fans. The contactor's protective cover and reversing power busbar ensure safe and efficient operation.
Top product features:
- Reversing action allows for easy changeover between two states
- Three-pole design provides a high level of control and flexibility
- Screw clamp terminals enable easy and secure connections
Top product applications:
- Industrial Automation Systems
- Motor Control Panels
- HVAC Systems

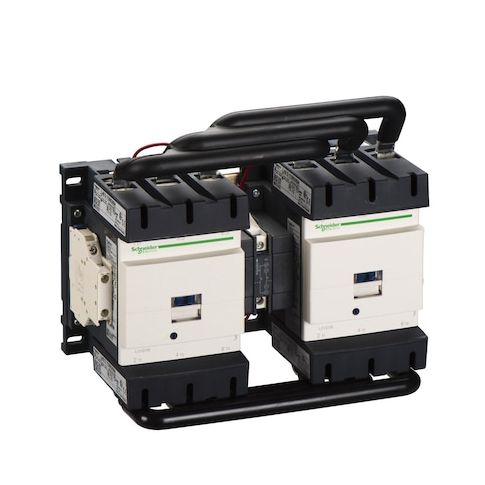

Schneider Electric TeSys Deca LC2D IEC Magnetic Contactor. A 3-pole reversing contactor (1NC/1NO auxiliary contacts) with a 120 V AC coil and screw clamp terminals. It is preassembled with a reversing power busbar and includes a protective cover.
- Action: Reversing
- - Poles: 3
- - Auxiliary Contacts: 1NC/1NO
- - Coil Voltage: 120 V AC
- - Connections - Terminals: Screw Clamp Terminals
- - Device Presentation: It comes with a reversing power busbar and protective cover as standard components.
- - Protective Cover: Yes
- - Series: LC2D
- - Product Name: TeSys Deca
- - Product or Component Type: reversing contactor
- - IP Rating: IP20 (indicates the level of protection against solids and liquids)
- - Width: 266 mm, Height: 158 mm, Depth: 148 mm -> Dimensions are provided for reference
- actual installation should consider appropriate clearances.
- - Net Weight: 6.35 kg
- - Mounting Support: plate, rail
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 14.54
