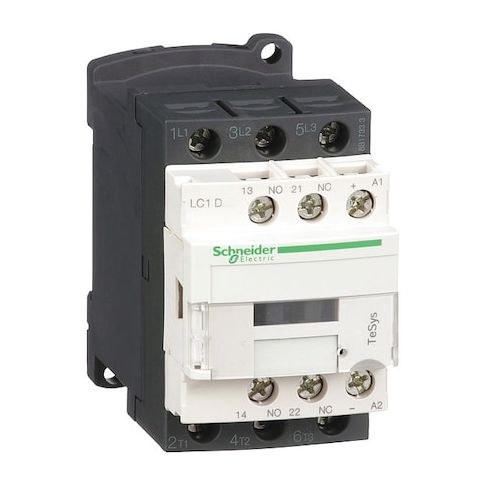

IEC Magnetic Contactor, 1NC/1NO, 125V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12GD
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for a wide range of applications, including industrial control systems, machinery, and automation. Its 3-pole, non-reversing design and 125V DC coil make it suitable for use in low-voltage DC systems. The contactor's 1NC/1NO auxiliary contact arrangement and screw clamp terminals provide flexibility and ease of installation. Ideal for use in various industries such as manufacturing, oil and gas, and renewable energy, this contactor offers improved performance, reduced downtime, and increased productivity. Its compact design and robust construction ensure reliable operation in harsh environments.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 3-pole, non-reversing design.
- It features a 1NC/1NO auxiliary contact arrangement for added functionality.
- The unit includes screw clamp terminals for easy and secure connections.
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 125 V DC coil. It includes a 1NC/1NO auxiliary contact arrangement, screw clamp terminals, and a protective cover. The coil features an integral suppression device, and the unit belongs to the LC1D series within the TeSys Deca range, rated for operation within the specified voltage ranges.
- Coil Voltage: 125 V DC
- - Poles: 3
- - Auxiliary Contacts: 1NC/1NO (mechanically linked 1 NO + 1 NC per IEC 60947-5-1)
- - Reversing Capability: Non-Reversing
- - Terminals: Screw Clamp
- - Mounting: Plate, Rail
- - IP Rating: IP20
- - Protective Cover: With
- - Coil Technology: With integral suppression device
- - Utilisation Category: AC-1
- AC-3
- AC-4
- AC-3e
- - Rated Making Capacity: Conforms to the rated making capacity at specified voltages and currents
- - Rated Breaking Capacity: Conforms to the rated breaking capacity at specified voltages and currents
- - Rated Operational Voltage: intended for use within these voltage specifications
- - Impedance: 2.5 mΩ
- - Impulse Withstand Voltage: 6 kV
- - Mechanical Durability: 30 Mcycles
- - Operating Speed: 3600 cycles per hr
- - Width: 45 mm
- - Height: 77 mm
- - Depth: 95 mm
- - Net Weight: 0.485 kg
- - Range: TeSys Deca
- - Series: LC1D
- - Shock Resistance: 15 G (closed)
- 10 G (open)
- - Vibration Resistance: 4 G (closed)
- 2 G (open)
- - Operating Altitude: 0 to 3000 m
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 20
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.15
