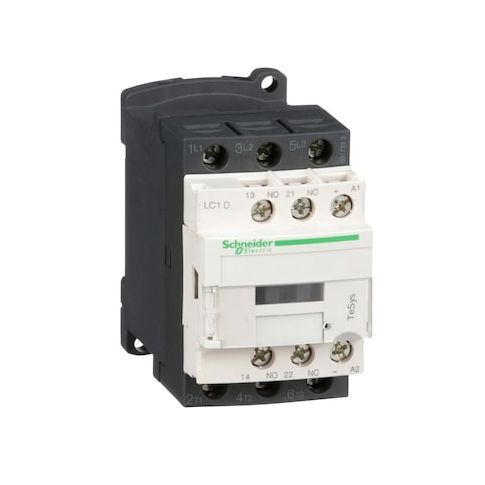

IEC Magnetic Contactor, 1NC/1NO, 110V DC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12FD

• Schneider Electric IEC Magnetic Contactor LC1D-series

  - Poles: 3

• Auxiliary contacts: 2 (configuration: 1NC/1NO)
• - Coil voltage: 110 V DC
• - Electrical connection: Screw Clamp Terminals
• - Mounting: Plate, Rail
• Includes protective cover
• - Series: LC1D
• - Rated voltage: operation within specified voltage ranges (up to 690 V AC / 300 V DC)
• - IP rating: IP20
• complies with UL 94 V1 flammability standard
• - Conforms to specified current ratings under defined conditions
• actual performance may vary based on application
• - With integral suppression device
• - Dimensions/weight: 45 mm W x 77 mm H x 95 mm D
• Net weight 0.485 kg
• - Standards: EN 60947-4-1, EN 60947-5-1, UL 508, IEC 60947-4-1, IEC 60947-5-1, CSA, and others
