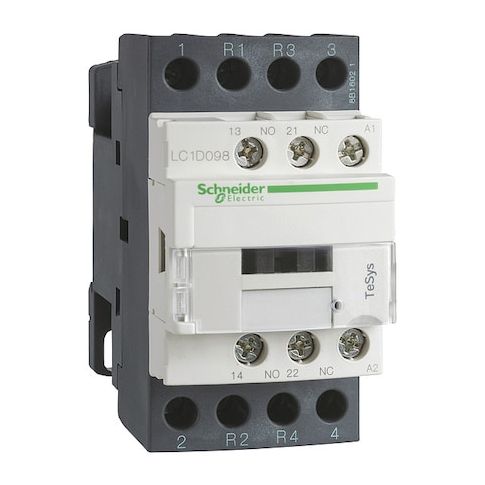

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D128B7
Free Shipping
In Stock
The Schneider LC1D IEC Magnetic Contactor is a reliable and efficient solution for switching resistive loads in various applications. With its 4-pole configuration and 24V AC coil, it provides a non-reversing operation, ensuring safe and consistent switching. The contactor features screw clamp terminals, auxiliary contacts, and a protective cover, making it easy to install and maintain. Suitable for use in industrial control systems, HVAC, and other applications, this contactor offers a high level of reliability and durability, with a mechanical lifespan of 15 million cycles and electrical durability of 0.8 million cycles.
Top product features:
- IEC Magnetic Contactor with 4 poles for switching resistive loads
- Non-reversing capability for reliable and predictable operation
- Screw clamp terminals for secure and easy electrical connection
Top product applications:
- Control Panel for Industrial Automation
- Power Distribution Unit for Commercial Buildings
- Machine Control Panel for Manufacturing Plants
The item is an IEC Magnetic Contactor (LC1D series) with 4 poles and a 24 V AC coil. It is non-reversing and rated for switching resistive loads within specified parameters. It includes auxiliary contacts with configurations as specified, uses screw clamp terminals, and mounts on plate or rail. It is rated for operation within the specified voltage and current ratings, with a protective cover included.
- Poles: 4
- - Coil Voltage: 24 V AC
- - Auxiliary Contacts: 2 total (includes auxiliary contacts with configurations as specified)
- - Reversing Capability: non-reversing capability (as per design specifications)
- - Electrical Connection: Screw Clamp Terminals
- - Mounting: compatible with standard mounting options such as plate or rail
- - Series: LC1D
- - Rated Voltage: rated for operation within these voltage ranges
- - Rated Insulation: insulation rating conforms to standards
- use within specified conditions required
- - Rated Making Capacity: rated capacities are based on testing under specific conditions
- actual performance may vary depending on application and environment
- - Rated Breaking Capacity: rated capacities are based on testing under specific conditions
- actual performance may vary depending on application and environment
- - IP Rating: IP20
- - Fire Rating: UL 94 V1
- - Includes Protective Cover: Yes
- - Non-Overlap Time: 1.5 ms
- - Operating Time: 12 to 22 ms (Closing)
- 4 to 19 ms (Opening)
- - Inrush VA: 70 VA
- - Hold VA: 7.5 VA (60 Hz 20°C)
- 7 VA (50 Hz 20°C)
- - Mechanical Durability: 15 Mcycles
- - Electrical Durability: 0.8 Mcycles (25 A, AC-1, <440 V)
- - Dimensions: Depth 92 mm
- Height 85 mm
- Width 45 mm
- - Net Weight: 0.365 kg
- - Overvoltage Category: CAT III
- - Impedance: 2.5 mΩ
- - Terminal Connection Type: Screw Clamp
- - Tightening Torque: 1.7 Nm
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
