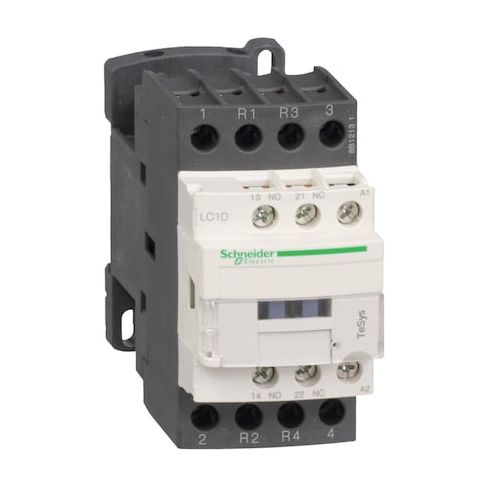

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1D188B7
Free Shipping
In Stock
This Schneider Electric IEC Magnetic Contactor is designed for use in control systems within IEC standards, compatible with resistive load applications. It features a 24 V AC coil, 1NC/1NO auxiliary contacts, and a 4-pole non-reversing configuration. Suitable for a range of applications, including industrial control, HVAC, and lighting systems, it offers reliable and efficient switching performance. Its compact design and screw clamp terminals provide easy installation and maintenance. With its high-quality construction and compliance with industry standards, this magnetic contactor is an ideal choice for applications requiring precise control and reliability.
Top product features:
- 1NC/1NO auxiliary contacts provide a separate control circuit for external devices.
- The product is designed for non-reversing operation, ensuring consistent and predictable behavior in control systems.
- Screw clamp terminals facilitate easy and secure electrical connections.
Top product applications:
- Resistive load applications as specified
- Resistive load applications as specified
- Control systems within the specifications of IEC standards
Schneider Electric IEC Magnetic Contactor, 4-pole, non-reversing, with a 24 V AC coil and 1NC/1NO auxiliary contacts. Rated for use in control systems within the specifications of IEC standards
- compatible with resistive load applications as per manufacturer’s specifications.
- Application: Suitable for resistive load applications as specified
- - Coil Voltage: 24 V AC
- - Auxiliary Contact Form: 1NC/1NO
- - Number of Poles: 4
- - Reversing Capability: Non-Reversing
- - Electrical Connection: Screw Clamp Terminals
- - Series: LC1D
- - Rated Voltage: 690 V AC
- - IP Rating: IP20
- - Fire Rating: Meets recognized flammability standards (UL 94 V1) applicable to plastic materials used in construction
- - Includes Protective Cover: Yes
- - Depth: 99 mm
- Height: 91 mm
- Width: 45 mm
- - Net Weight: 0.425 kg
- - Full Load Amps - Inductive/Resistive: Rated for continuous operation at these current levels under specified conditions
- - Rated Making Capacity: Capable of handling these currents within the device’s rated conditions
- actual performance may vary based on application specifics
- - Short-Time Withstand Current: Designed to withstand short-term electrical surges up to specified values under controlled test conditions
- - Standards: Complies with relevant industry standards when installed and used according to manufacturer instructions and local codes
- - Operating Time: Typical operating times based on testing
- actual response time may vary depending on system conditions
- - Non-Overlap Time: Specified non-overlap time measured during testing
- actual timing may differ slightly in operational environments
- - Thermal Amperage: Rated for operation within these amperage ranges under standard test conditions
- actual usage should adhere to manufacturer guidelines
- - Impedance: 2.5 mΩ
- - Impulse Withstand Voltage: 6 kV
- - Inrush VA: 70 VA
- - Watts Loss: 2–3 W
- - Maximum Temperature: 850 °C
- - Shock Resistance: 15 G (Closed)
- 10 G (Open)
- - Vibration Resistance: 4 G (Closed)
- 2 G (Open)
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 16
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 16.16
