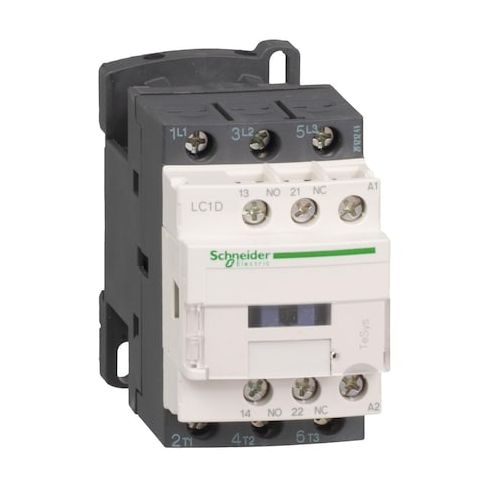

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, nonreversing, Screw MPN:LC1D186B7

• The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, 3-pole device intended for use in motor control and resistive load applications. It operates with a coil voltage of 24V AC and has an auxiliary contact form of 1NC/1NO. This product features mechanically linked auxiliary contacts type in accordance with IEC standards, aimed at providing consistent operation. With an average impedance of 2.5 mOhm, it is designed to contribute towards effective power circuit performance. The contactor is built with the intention of enduring a variety of climatic conditions, including potential exposure to damp heat, as per IACs E10 and IEC 60947-1 Annex Q category D standards.

  Key Features:

• - Coil Technology: Without built-in suppressor module for standard operation.
• - Connections - Terminals: Lugs-ring terminals ensure secure electrical connections.
• - Electrical Durability: Rated up to 1 Mcycles at <=440 V for AC-1 and up to 1.65 Mcycles at <=440 V for AC-3e operations.
• - Fire Resistance: Built with materials that are rated against temperatures up to 850°C according to the IEC60695-2-1 standard.
• - Full Load Currents: Rated for inductive loads upto18 A & resistive loads upto32 A.
• - Horsepower Ratings: Designed with specifications that allow it handle motors within a range from single phase -240V AC (3hp) upto three phase -575V (15hp).
• - IP Rating: Comes equipped with an IP20 rating, which is intended to provide protection against touch by fingers and objects greater than12mm
• however, it does not guarantee protection against water ingress.
• - Mounting Support: Designed for mounting on either plate or rail setups to accommodate different installation needs.
