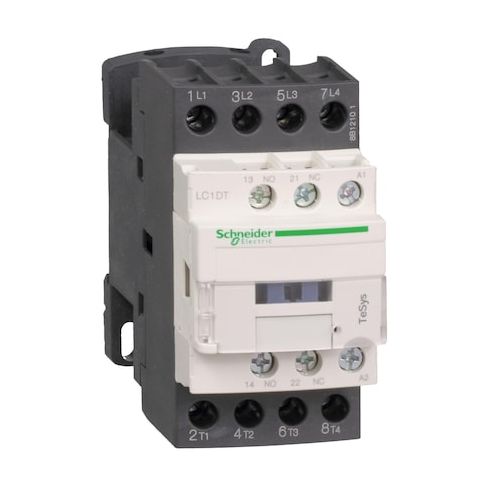

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT326BL

• The Schneider Electric IEC Magnetic Contactor is a 4-pole, non-reversing device with a 1NC/1NO auxiliary contact set and screw clamp terminals. It uses a 24 V DC coil to operate four normally open power contacts and is rated for operation within specified load types. This unit is part of the TeSys Deca range (LC1D series) and is suitable for switching power circuits within specified parameters.

  Key features

• - Coil voltage and control: 24 V DC coil
• DC low consumption control circuit
• built-in bidirectional peak limiting diode suppressor
• - Auxiliary contacts: 1NC/1NO
• mechanically linked 1 NO + 1 NC (IEC 60947-5-1)
• mirror contact 1 NC (IEC 60947-4-1)
• - Main contacts and pole configuration: 4 poles
• Pole contact composition: 4 NO
• - Reversing and mounting: Non-Reversing
• Mounting supported on plate or rail
• Terminal connection: Screw Clamp
• - Protection and enclosure: IP20
• Includes protective cover
• - Range and ratings: Series LC1D
• Range TeSys Deca
• Rated voltage 690 V AC / 300 V DC
• Rated insulation voltage power circuit 600 V, signalling circuit 690 V
• - Current and utilization: Utilisation category AC-1, AC-3, AC-3e, AC-4
• Rated making capacity 140 A (AC signalling), 250 A (DC signalling), 300 A @ 440 V (power circuit)
• - Physical size and weight: Width 45 mm
• Depth 107 mm
• Height 91 mm
• Net weight 0.425 kg
• - Other ratings: Impedance 2.5 mΩ
• Impulse withstand voltage 6 kV
• Short-time withstand currents and standards listed in product data (e.g., 40–240 A depending on circuit type)
