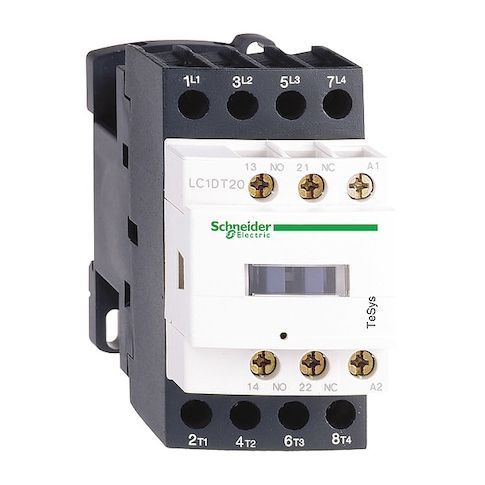

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT25U7
Free Shipping
In Stock
The Schneider Electric LC1D IEC Magnetic Contactor is a reliable and efficient solution for switching resistive loads in a variety of applications. Suitable for use in industrial automation, commercial, and residential settings, this contactor provides a high level of protection and control. Its non-reversing operation ensures safe and reliable switching, while its 240V AC coil and 4-pole design make it ideal for a range of applications, including motor control and power distribution. With its compact design and easy wiring via screw clamp terminals, this contactor is a convenient and cost-effective solution for any electrical project.
Top product features:
- The product has four poles and non-reversing operation.
- It features a 1NC/1NO auxiliary contact.
- It is rated for switching resistive loads within specified parameters.
Top product applications:
- Industrial Automation
- Control Panels
- Manufacturing Lines
The product is an IEC Magnetic Contactor (Schneider Electric LC1D series) rated for switching resistive loads within specified parameters. It features four poles, non-reversing operation, and a 240 V AC coil, with a 1NC/1NO auxiliary contact. Wiring is via screw clamp terminals, and a protective cover is included.
Key features
- - Coil voltage: 240 V AC (50/60 Hz)
- - Poles and contacts: 4P
- 4 NO
- - Auxiliary contacts: 1NC/1NO
- mechanically linked 1 NO + 1 NC
- - Terminals: Screw Clamp
- - Mounting: Plate
- Rail
- - Protective cover: Included
- - IP rating: IP20
- - Series: LC1D
- - Weight: 0.365 kg
- Dimensions: 45 mm W × 85 mm H × 92 mm D
- - Impedance: 2.5 mΩ
- - Rated for inrush and holding power within specified conditions
- - Rated making capacity as per manufacturer specifications under defined conditions
- - Rated for continuous operation within specified current and voltage limits
- - Tested to withstand impulse voltages up to the specified level under standard test conditions
- - Capable of withstanding short-term currents within the specified range under test conditions
- - Maximum operating rate: 3600 cycles/h
- - Operating times: Opening 4–19 ms
- Closing 12–22 ms
- - Protection and standards: Pollution Degree 3
- Standards include EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 508, CSA
- Certifications include GL
- DNV
- GOST
- CSA
- RINA
- LROS
- BV
- CCC
- UL
- - Additional notes: Protective treatment THIEC 60068-2-30
- Rated insulation voltages as specified for power and signalling circuits.
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 54 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.84
