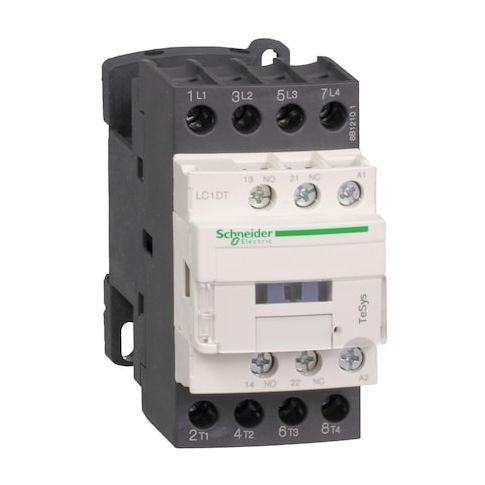

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw Clamp MPN:LC1DT206BL

• The SCHNEIDER ELECTRIC IEC Magnetic Contactor is a four-pole, non-reversing, DC-operated switch used to control power circuits in electrical control systems. It features a 24 V DC coil with a 1NC/1NO auxiliary contact configuration and screw clamp terminals, and it is part of the TeSys Deca LC1D range with a protective cover included. The device is intended for panel mounting according to manufacturer specifications, with plate and rail compatibility.

  - Coil voltage: 24 V DC

• built-in bidirectional peak limiting diode suppressor
• - Main and auxiliary contacts: 4 NO main contacts
• 1NC/1NO auxiliary (2 total)
• - Poles and range: 4P
• Range TeSys Deca
• Series LC1D
• - Rated making capacity: rated for operation with resistive loads within specified parameters: 140 A AC Signalling
• 250 A DC Signalling
• 250 A @ 440 V Power Circuit
• - Rated operational voltage: rated for operation within the specified voltage and frequency ranges
• power circuit up to 690 V AC (25–400 Hz)
• up to 300 V DC
• - IP and protection: IP20
• Protective cover included
• Protective treatment THIEC 60068-2-30
• - Short-time withstand current: power circuit up to 210 A (various brief durations)
• signalling circuit up to 140 A
• - Impedance: 2.5 mΩ (Ith 20 A, 50 Hz for power circuit)
• - Impulse withstand voltage: 6 kV
• - Mounting and size: Plate and Rail mounting
• Width 45 mm
• Height 85 mm
• Depth 99 mm
• - Weight: 0.365 kg
• - Associated fuse ratings: 10 A gG (signalling circuit)
• 25 A gG ≤690 V (power circuit, coordination type 1)
• 20 A gG ≤690 V (power circuit, coordination type 2)
• - Operating characteristics: 3600 cycles per hour
• Operating time: 65.45–88.55 ms (closing), 20–30 ms (opening)
• - Pollution/ambient ratings: Pollution Degree 3
• Operating altitude 0–3000 m
