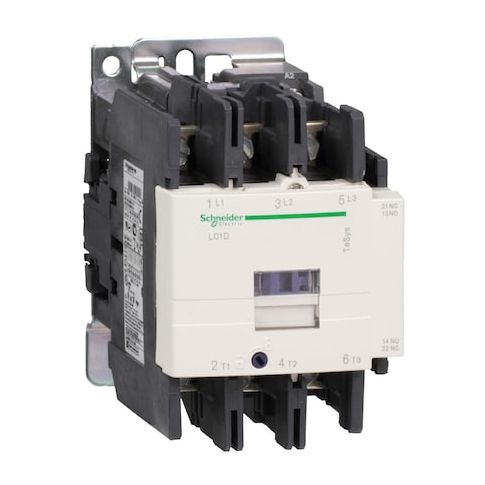

IEC Magnetic Contactor, 1NC/1NO, 48V AC, 3 P, nonreversing, Screw MPN:LC1D806LE7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for motor control and resistive load applications. Its 48 V AC coil and 3-pole, nonreversing design make it suitable for a wide range of uses, including industrial automation and commercial settings. The unit's 1NC/1NO auxiliary contact and screw-type connections provide easy installation and maintenance. Its high current ratings and low power dissipation make it ideal for high-demand applications. The TeSys LC1D series also includes a protective cover for added safety. This contactor is perfect for use in applications where reliability and efficiency are crucial.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards.
- It incorporates a 48 V AC coil suitable for motor control and resistive load applications.
- It features a 3-pole, nonreversing contactor with a 1NC/1NO auxiliary contact.
Top product applications:
- Motor control and resistive load applications
- General purpose motor control and switching applications
- Resistive load switching applications
The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It incorporates a 48 V AC coil suitable for motor control and resistive load applications. This unit is a 3-pole, nonreversing contactor with a 1NC/1NO auxiliary contact, and it features screw-type connections. It is part of the TeSys LC1D series, which includes a protective cover.
- Coil voltage: 48 V AC
- - Poles and main contacts: 3P, 3 NO
- - Auxiliary contacts: 1NC/1NO
- mechanically linked 1 NO + 1 NC (IEC 60947-5-1)
- - Reversing capability: nonreversing
- - Terminal connections: Control circuit connections: Lugs or ring terminals
- Power circuit connections: bars, lugs, or screw terminals
- - Electrical protection: IP20 front face
- - Includes a protective cover: Yes
- - Mounting: Rail, Plate
- - Weight and size: Net weight 1.59 kg
- Depth 130 mm
- Height 127 mm
- Width 85 mm
- - Fuse ratings are specified as follows: Signalling circuit—10 A
- Type 1 power circuit—200 A
- Type 2 power circuit—160 A
- - Rated currents are specified as follows: AC-1 resistive loads up to 125 A
- AC-3 inductive loads up to 80 A
- - The rated making capacity is provided at specific voltages but does not guarantee performance under all conditions
- - Rated short-time withstand current: 640 A (40°C, Power, 10 s)
- 990 A (40°C, Power, 1 s)
- 135 A (40°C, Power, 10 min)
- 320 A (40°C, Power, 1 min)
- 100 A (Signalling, 1 s)
- 120 A (Signalling, 500 ms)
- 140 A (Signalling, 100 ms)
- - Power dissipation per pole: 5.1 W (AC-3)
- 12.5 W (AC-1)
- 5.1 W (AC-3e)
- - Impedance: 0.8 mΩ
- - Impulse withstand voltage: 8 kV
- - Operating speed/time: Typical switching times are provided but do not imply guaranteed operational speeds under all circumstances
- - Overvoltage category: CAT III
- - Range/Series: TeSys LC1D
- - Rated operational voltage: power circuit up to 690 V AC
- signalling circuit up to 690 V AC
- control circuit 208 V AC
