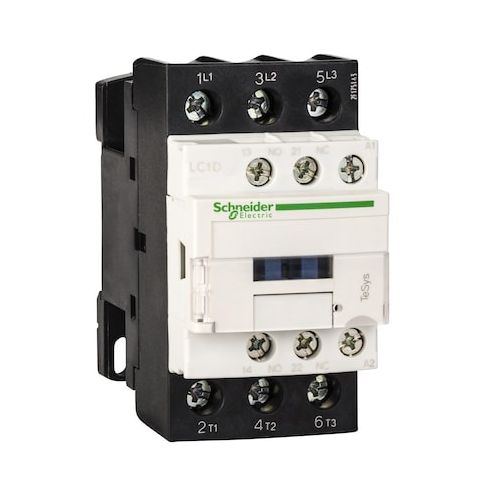

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D38U7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient device for motor control and resistive load switching applications. With a 3-pole, non-reversing design and 1NC/1NO auxiliary contacts, it provides precise control and monitoring capabilities. Rated for operation at 240V AC, it can handle full load currents up to 550A and is suitable for use in a variety of applications, including 5hp single-phase, 10hp 208-240V three-phase, and 20hp 480V three-phase motors. Its compact design and screw clamp terminals make it easy to install and integrate into existing systems, making it an ideal solution for industrial and commercial settings.
Top product features:
- 3-pole, non-reversing operation allows for reliable and efficient switching of motor control and resistive loads.
- 1NC/1NO auxiliary contact pair enables the device to provide feedback and control signals to other devices.
- Screw clamp terminals provide a secure and easy-to-use connection method for wiring.
Top product applications:
- Motor control
- Resistive load switching
- Industrial automation
The item is an IEC Magnetic Contactor from Schneider Electric. It is a 3-pole, non-reversing device with 1NC/1NO auxiliary contacts, rated for use in motor control and resistive load switching applications within specified parameters. It is rated for operation with a 240 V AC coil and screw clamp terminals, and it can be mounted on a plate or rail. It includes a protective cover.
Key features
- - Poles and auxiliary: 3 poles
- 1NC/1NO auxiliary contact pair (2 auxiliary contacts total)
- Reversing: non-reversing
- - Coil and control: Coil voltage 240 V AC
- - Wiring and mounting: Screw clamp terminals
- Mounts on Plate, Rail
- Dimensions: 85 mm H × 45 mm W × 92 mm D
- Net weight 0.38 kg
- - Electrical ratings: Rated for operation at voltages up to 690 V AC / 300 V DC
- Capable of handling full load currents up to these ratings when used within specified conditions
- Rated making capacity 140 A (AC signalling), 250 A (DC signalling), 550 A @ 440 V (power circuit)
- - Performance and protection: IP20 rating
- Includes protective cover
- Series LC1D
- maximum operating temperature rating of 850°C (note: verify actual product specifications, as this seems unusually high)
- - Power and motor ratings: 5 hp at 240 V single-phase
- 10 hp at 208–240 V three-phase
- 20 hp at 480 V three-phase
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.92
