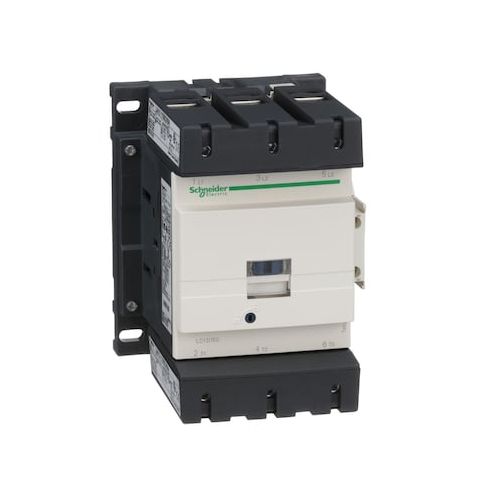

IEC Magnetic Contactor, 1NC/1NO, 220V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D150M7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in various applications. Its 3-pole, non-reversing design and 220V AC control voltage make it suitable for use in industrial and commercial settings. The unit's 1NC/1NO auxiliary contact and screw clamp terminals provide secure connections, while its IP20 ingress protection rating ensures safety. Ideal for use in control panels, machinery, and equipment, this contactor offers reliable switching and long-lasting performance, making it an excellent choice for applications requiring high reliability and efficiency.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing unit designed to operate with a 220 V AC control voltage.
- It includes a 1NC/1NO auxiliary contact for additional control functionality.
- The unit uses screw clamp terminals for connections, providing a secure and reliable way to make electrical connections.
Top product applications:
- Industrial Automation Systems
- Magnetic Contactor for 220V AC Power Distribution
- Motor Control Systems for 3-Pole Applications
The Schneider Electric IEC Magnetic Contactor is an electrically operated switching device used to control power circuits, rated for operation within specified load types. This 3-pole, non-reversing unit is designed to operate with a 220 V AC control voltage and includes a 1NC/1NO auxiliary contact. It uses screw clamp terminals for connections, comes with a protective cover, and has an IP20 ingress protection rating. The unit is part of the TeSys Deca range (LC1D family) and has dimensions of 120 mm W × 136 mm D × 158 mm H and a weight of approximately 2.5 kg.
- Poles/Main contacts: 3P with 3 NO main contacts
- Auxiliary: 1NC/1NO (mechanically linked 1 NO + 1 NC
- mirror contact 1 NC IEC 60947-4-1)
- - Coil: 220 V AC
- Control circuit: AC 50/60 Hz
- - Mounting/ connections: Mounting on Plate and Rail
- Electrical connections via Screw Clamp terminals
- - Protection: IP20
- Includes protective cover
- - Fuse protection: 10 A signaling circuit
- 315 A Type 1 power circuit
- 250 A Type 2 power circuit
- - Range/series: TeSys Deca, LC1D
- has dimensions of 120 mm W × 136 mm D × 158 mm H and a weight of approximately 2.5 kg
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.49
