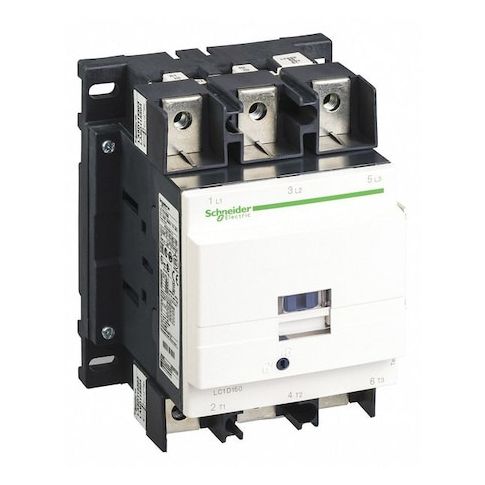

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:LC1D1506G7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor-control and resistive load applications. Its 3-pole, non-reversing design ensures safe and precise control, while the 120V AC coil and screw terminals provide easy installation. The device features one normally closed and one normally open auxiliary contact, meeting IEC 60947-5-1 specifications. Suitable for use in a variety of settings, including industrial and commercial environments, this contacter offers increased productivity and reduced downtime. Its compact design and IP20 rating make it an ideal choice for applications requiring a high level of protection and reliability.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a coil voltage of 120 V AC.
- It features a 3-pole, non-reversing design.
- It includes an integrated suppression device compliant with industry standards.
Top product applications:
- Motor Control
- Resistive Load
- Power Circuit
The Schneider Electric IEC Magnetic Contactor described is a 3-pole, non-reversing, electrically operated switch rated for use in motor-control and resistive load applications within specified parameters. It uses a 120 V AC coil and includes one normally closed and one normally open auxiliary contact as per IEC 60947-5-1 specifications. The device uses screw terminals and is part of the TeSys LC1D series within the TeSys Deca family, featuring an integrated suppression device compliant with industry standards and includes a protective cover conforming to IP20 rating.
Key features
- - Coil Voltage: 120 V AC
- Control Circuit Type: AC 50/60 Hz
- - Poles: 3
- - Auxiliary Contacts: 1NC/1NO
- Type: mechanically linked 1 NO + 1 NC IEC 60947-5-1
- - Reversing Capability: Non-Reversing
- - Terminals: Screw
- - Applications: Motor Control
- Resistive Load
- - Protective Features: Integrated suppression device compliant with industry standards
- - Protective Cover: Includes a protective cover conforming to IP20 rating
- - IP Rating: IP20
- - Fuse Ratings: 10 A gG (Signalling)
- 315 A gG (Type 1 Power Circuit, <= 690 V)
- 250 A gG (Type 2 Power Circuit, <= 690 V)
- - Dimensions/Weight: 120 mm W x 158 mm H x 136 mm D
- Net Weight: 2.5 kg
- - Rated Operational Current: 200 A (AC-1, Power Circuit)
- 150 A (AC-3, Power Circuit)
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.88
