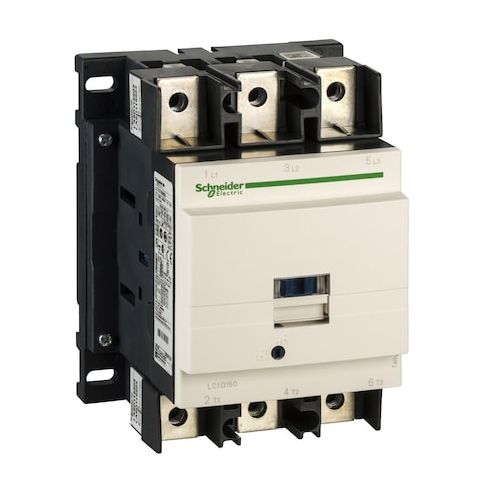

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D1506BD
Free Shipping
In Stock
The Schneider IEC Magnetic Contactor is a reliable and efficient switching device suitable for various applications, including control circuits, motor control, and power distribution. Its 3-pole, non-reversing design and 24V DC coil ensure precise control and minimize energy losses. The device's 1NC/1NO auxiliary contact provides additional functionality for monitoring and control. With a high rated making capacity and impedance, it can handle demanding loads and applications. Suitable for use in various industries, including manufacturing, logistics, and renewable energy, this contactor offers a reliable and efficient solution for controlling and protecting electrical circuits.
Top product features:
- The product has a 3-pole, non-reversing switching mechanism that allows for reliable control of electrical circuits.
- The product features a 1NC/1NO auxiliary contact arrangement that provides a secure and efficient means of controlling additional circuits or devices.
- The product is designed with screw terminals for connections, enabling easy and secure attachment of wires and cables.
Top product applications:
- DC Motor Control Circuit
- Power Distribution Board for Industrial Automation
- Automated Lighting Control System
The IEC Magnetic Contactor is a 3-pole, non-reversing switching device with a 24 V DC coil and a 1NC/1NO auxiliary contact. Rated for operation within IEC standards for control circuits and uses screw terminals for connections. It belongs to the TeSys LC1D family, with the TeSys Deca range designation, and comes with a protective cover (note: does not imply safety guarantee).
- Coil voltage: 24 V DC
- Control circuit type: DC standard
- - Poles and contacts: 3P
- Main contacts: 3 NO
- Auxiliary contacts: 1 NC/1 NO, mechanically linked 1 NO + 1 NC (IEC 60947-5-1)
- - Full load currents: Rated full load currents: Inductive 150 A
- Resistive 200 A
- - Rated making capacity: Rated making capacity: Indicates the rated making capacity as specified by relevant standards
- - Impedance: Provides the measured impedance value based on testing or specifications
- - IP protection: Conforms to IP20 ingress protection rating as per standard classification
- - Mounting: Suitable for mounting via rail or plate according to installation instructions
- - Dimensions: Physical dimensions provided for compatibility considerations
- - Net weight: Weight of the product as specified, without implying performance guarantees
- - Terminals: Describes terminal types used in connections without suggesting safety assurances
- - Protective cover: Comes with a protective cover (note: does not imply safety guarantee)
- - Series/Range: LC1D
- TeSys
- - Utilisation category: AC-3
- AC-1
- AC-4
- AC-3e
- - Rated impulse withstand voltage: 8 kV
- - Insulation voltage: Power circuit up to 1000 V
- Signalling circuit up to 690 V
- - Rated short-time withstand current: Multiple values listed (e.g., 250 A at 40°C for power circuit
- 580 A for 1 min
- 1200 A for 10 s
- 1400 A for 1 s)
- - Reversing capability: Non-Reversing
- - Certifications: GL
- CSA
- CCC
- UL
- DNV
- LROS
- RINA
- BV
- GOST
- UKCA
- CE
Additional Information
- Country of Origin: CZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 4.71
