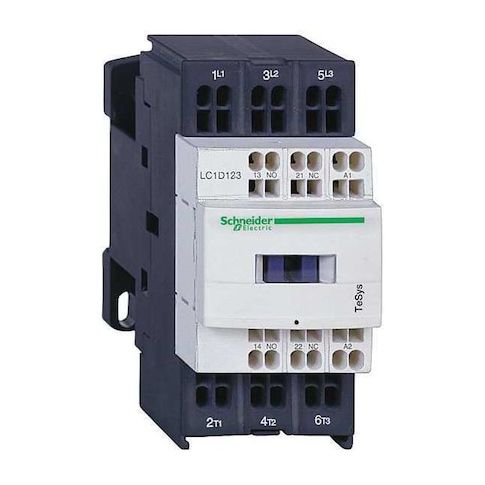

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Spring Type MPN:LC1D123BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and protecting electrical circuits in a variety of applications. This 3-pole, non-reversing device is designed for use in industrial settings, such as machinery and equipment control, and features a built-in bidirectional peak-limiting diode suppressor for coil protection. The contactor's compact design and high current capacity make it ideal for applications where space is limited and high power is required. Its durable construction and long lifespan ensure reliable operation, making it a great choice for use in demanding industrial environments.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has a 24V DC coil.
- It features a built-in bidirectional peak-limiting diode suppressor for the coil.
- It has a non-reversing capability.
Top product applications:
- Industrial Automation
- This IEC Magnetic Contactor is suitable for use in industrial automation systems, particularly in applications where high reliability and low power consumption are required.
- Power Distribution Systems
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, spring-type device with a 24 V DC coil (1NC/1NO auxiliary contacts) from the LC1D series. Rated for operation within specified load types. The unit features a built-in bidirectional peak-limiting diode suppressor for the coil.
Key features
- - Coil voltage: 24 V DC
- - Poles: 3
- - Reversing capability: Non-Reversing
- - Auxiliary contact form: 1NC/1NO
- - Mounting options: Rail
- Plate
- - Series: LC1D
- - Protective cover: With
- - IP rating: IP20
- - Fuse amps: 10 A (Signalling Circuit)
- 40 A (Power Circuit Type 1)
- 25 A (Power Circuit Type 2)
- - Rated insulation voltage: Power circuit 690 V IEC 60947-4-1
- Signalling circuit 690 V IEC 60947-1
- 600 V CSA
- 600 V UL
- - Rated making capacity: 250 A @ 440 V (Power Circuit)
- 140 A (AC Signalling Circuit)
- 250 A (DC Signalling Circuit)
- - Thermal amperage: 10 A (Signalling Circuit)
- 16 A (Power Circuit) at 60°C
- - Mechanical durability: 30 Mcycles
- - Impedance: 2.5 mΩ
- - Impulse withstand voltage: 6 kV
- - Time constant: 40 ms
- - Non-overlap time: 1.5 ms
- - Dimensions: Width 45 mm
- Height 99 mm
- Depth 95 mm
- - Weight: 0.485 kg
- - Maximum operating rate: 3600 cyc/h at 60°C
- - Pole contact composition: 3 NO
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.24
