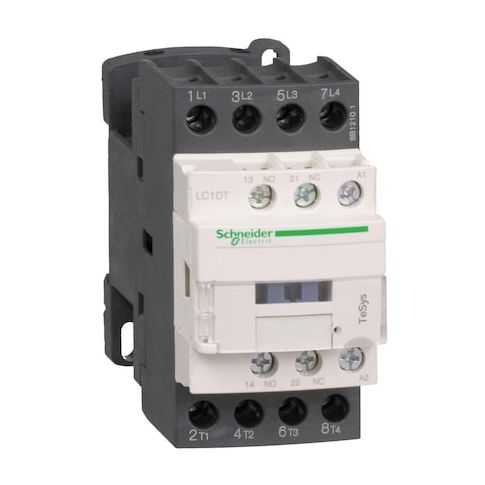

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 4 P, Non-Reversing, Screw MPN:LC1DT406BL
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for resistive load applications. With a 24V DC coil and 4-pole configuration, it provides precise control and switching capabilities. The non-reversing feature ensures safe and reliable operation, making it ideal for use in various industries such as manufacturing, healthcare, and commercial settings. Its compact design and screw terminal connection make it easy to install and integrate into existing systems. Suitable for applications requiring precise load control, this magnetic contactor offers a cost-effective and reliable solution for maintaining efficient and safe electrical systems.
Top product features:
- It uses an electromagnetic coil to open or close contacts
- It features a 1NC/1NO auxiliary contact
- It is suitable for resistive load applications
Top product applications:
- Resistive Load
- Inductive Load
- General Purpose Switching
Schneider Electric’s IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, rated for switching loads within specified parameters. This 4-pole, non-reversing unit features a 24 V DC coil and a 1NC/1NO auxiliary contact, and is suitable for resistive load applications within the specified electrical ratings.
- Application: Resistive Load
- - Coil Voltage: 24 V DC
- - Auxiliary Contact Form: 1NC/1NO
- - Number of Poles: 4
- - Reversing Capability: Non-Reversing
- - Rated Voltage: 690 V AC, 300 V DC
- - Terminal Connection Type: Screw
- - Electrical Connection: Lugs-Ring Terminals
- - Mounting: Plate, Rail
- - IP Rating: IP20
- - Series: LC1D
- Item: IEC Magnetic Contactor
- - Dimensions (HxWxD): 91 mm x 45 mm x 107 mm
- - Net Weight: 0.425 kg
- - Includes Protective Cover: Yes
- - Fire Rating: UL 94 V1
- - Full Load Amps: 40 A (Resistive and Inductive)
- - Impulse Withstand Voltage: 6 kV
- - Standards: CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
- - Non-Overlap Time: 1.5 ms
- - Operating Time: Closing 65.45–88.55 ms
- Opening 20–30 ms
Additional Information
- Country of Origin: ID
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.38
