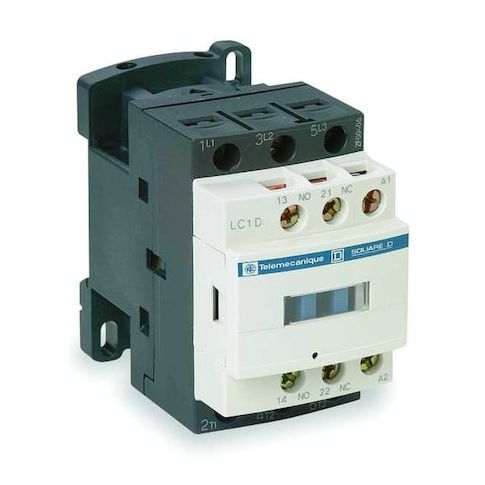

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09LE7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for motor control and resistive-load applications. Its three-pole, non-reversing design ensures smooth and consistent operation, while its 208V AC coil and screw clamp terminals provide a secure connection. With auxiliary contacts and a protective cover, this contactor offers added safety and flexibility. Suitable for use in a variety of settings, including industrial and commercial applications, this contactor is ideal for use in power distribution panels, motor control centers, and other electrical systems where reliability and efficiency are paramount.
Top product features:
- Three-pole, non-reversing, mains-operated switch for motor control and resistive-load applications.
- The unit includes auxiliary contacts for additional control and monitoring capabilities.
- The contactor features screw clamp terminals for easy and secure electrical connections.
Top product applications:
- Motor control applications
- Resistive-load applications
- Industrial control and automation systems
The Schneider Electric IEC Magnetic Contactor is a three-pole, non-reversing, mains-operated switch rated for use in motor control and resistive-load applications within specified parameters. It uses a 208 V AC coil and includes auxiliary contacts (1NO/1NC) and screw clamp terminals as specified. The unit is part of the TeSys line (TeSys Deca) and conforms to IEC standards
- enclosure options are available separately.
- Coil voltage: 208 V AC
- Coil form: 208 V AC
- - Action: Non-Reversing
- Reversing: No
- - Poles/Phase: 3 poles
- Three-phase
- - Auxiliary contacts: 2 total (1NO/1NC)
- Main contacts: 3 NO
- - Auxiliary contact configuration: 1NO/1NC
- - Electrical connection: Screw Clamp Terminals
- - Enclosure: IP20
- enclosure options are available separately
- - Series: TeSys Deca
- Frame/Code: TeSys
- - Maximum voltage: rated for operation up to 690 V AC within specified conditions
- - Rated currents: 9 A (Inductive), 20 A (Resistive) under specified conditions
- - Rated making capacity: 250 A @ 440 V (Power Circuit)
- 140 A (Signalling Circuits) rated for making capacity up to these values within the defined testing standards
- - Mechanical durability: tested for approximately 15 million cycles under standard test conditions
- Electrical durability: 2,000,000 cycles (Power Circuit), 600,000 cycles (Signalling Circuit) under standard test conditions
- actual lifespan may vary based on usage
- - Inrush/Hold: specifications provided are typical operational parameters under standard test conditions
- - Dimensions and weight: Width 1.77 in
- Overall Depth 3.39 in
- Overall Height 3.03 in
- Net weight 0.32 kg
- - Protection and mounting: IP20
- enclosure options are available separately
- includes protective cover
- mounts on plate or DIN rail
- - Additional specs: Series and standards references
- Operating frequency 50/60 Hz
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.80
- Package Height: 3.50
- Package Weight: 0.80
