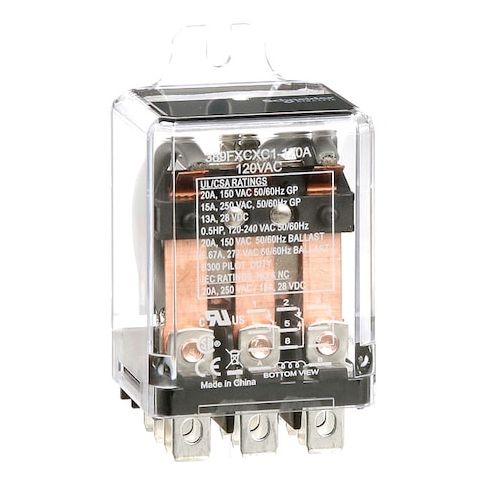

Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect MPN:389FXCXC1-120A
Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect
This Schneider Enclosed Power Relay is a reliable and efficient solution for a wide range of applications, including industrial control systems, automation, and power distribution. Its flange mount design provides a secure and easy installation, while its quick-connect electrical connection simplifies setup and reduces downtime. With a current rating of 20 A and a contact rating of up to 20 A at 150/250V, this relay can handle high-power loads with ease. Suitable for use in harsh environments, it features a mechanical flag status indicator and is designed for use in applications such as motor control, lighting, and HVAC systems.
Top product features:
- Enclosed design protects the internal components from environmental factors
- Quick Connect electrical connection enables fast and secure attachment of wires
- Three-position double-throw (3PDT) contact form allows for multiple switching configurations
Top product applications:
- Industrial Automation Systems
- Motor Control Circuits
- Power Distribution Panels
Enclosed Power Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.66 in, Body Width 1.4 in, Coil Resistance 1,700 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 1.70
- Package Weight: 0.21
Product info last updated on January 15, 2026 7:24am UTC
Category: Industrial Electrical Controls and Automation
