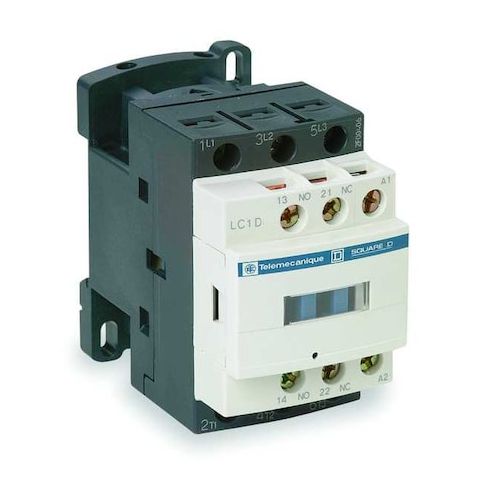

IEC Magnetic Contactor, 1NC/1NO, 208V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D32LE7
Free Shipping
In Stock
This IEC Magnetic Contactor from Schneider Electric is a reliable and efficient solution for controlling power circuits in motor control and resistive-load applications. Its 3-pole, non-reversing design ensures safe and precise control, while the 208V AC coil and screw clamp terminals provide easy installation and maintenance. With two auxiliary contacts and a protective cover, this contactor offers added flexibility and protection. Suitable for use in a variety of settings, including industrial and commercial environments, this product is ideal for applications such as HVAC, pumps, and conveyor systems, offering a reliable and efficient way to manage power distribution.
Top product features:
- Non-Reversing Action
- Motor Control and Resistive Load Application
- Screw Clamp Terminals
Top product applications:
- Motor Control
- Resistive Load
- IEC operation
The item is an IEC Magnetic Contactor designed to control power circuits in motor control and resistive-load applications. It is a 3-pole, non-reversing device with a 208 V AC coil, part of Schneider Electric’s TeSys line (TeSys Deca). It uses screw clamp terminals and includes two auxiliary contacts configured as 1NO/1NC. This unit is rated for IEC operation within specified environmental conditions and includes a protective cover.
Key features
- - Action: Non-Reversing
- - Application: Motor Control, Resistive Load
- - Coil Voltage: 208 V AC
- - Phase / Poles: Three-phase, 3 poles
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Main Contacts: 3 normally open
- - Contactor Style / Frame: IEC / TeSys Deca
- - Rated Voltage / Insulation: 690 V AC
- 600/690 V insulation
- - Frequency: 50/60 Hz
- - Enclosure / Protection: No Enclosure
- IP20
- Includes Protective Cover
- - Mounting / Terminals: DIN Rail, Plate
- Screw Clamp terminals
- - Net Weight / Dimensions: 0.375 kg
- 3.62 in depth, 1.77 in width, 3.35 in height
- - Standards: UL 508, UL Listed, EN 60947-4-1, EN 60947-5-1 (and others)
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 4.00
- Package Height: 2.20
- Package Weight: 0.90
