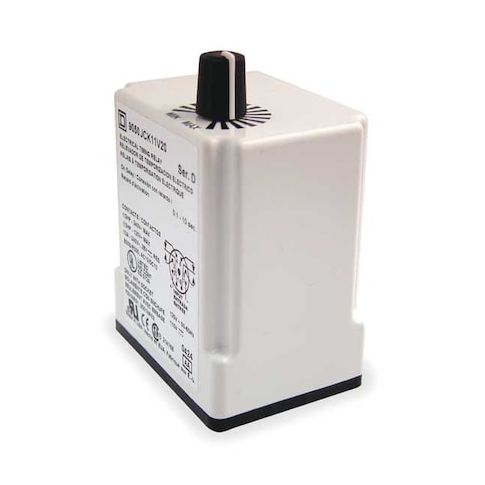

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V DC, DPDT MPN:9050JCK25V20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0711602
Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V DC, DPDT
The Schneider Single Function Time Delay Relay is a reliable and versatile solution for a wide range of applications, including industrial control systems, automation, and power distribution. Its octal design and DPDT contact form make it easy to integrate into existing systems, while its rotary knob adjustment method provides precise control over the time delay function. With a minimum time setting of 1.8 seconds and a maximum time setting of 3 minutes, this relay is ideal for applications requiring a delay between 10 and 180 seconds. Its compact design and sealed construction ensure durability and reliability in harsh environments.
Top product features:
- Adjustable delay time from 1.8 seconds to 3 minutes
- Provides off-delay functionality
- DPDT (Double Pole Double Throw) contact form for high current switching capability
Top product applications:
- Industrial Lighting Control Systems
- Automotive Electronic Systems
- Medical Equipment Control Panels
Single Function Time Delay Relay, Adjustment Method Rotary Knob, Base Shape Octal, Coil Voltage 120V DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 110V AC, 120V DC, Minimum Time Setting 1.8 sec, Maximum Time Setting 3 min, Number of Pins 11, Sealing Sealed, Mounting Style Plug-In, Body Depth 4.09 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.60
- Package Height: 1.70
- Package Weight: 0.27
Product info last updated on February 8, 2026 6:13pm UTC
Category: Industrial Electrical Controls and Automation
