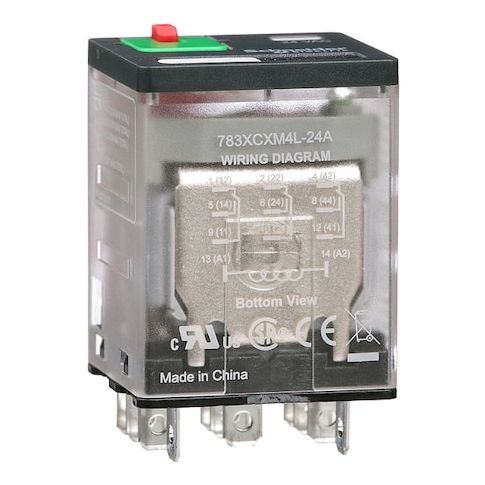

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector MPN:783XCXM4L-24A
Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector
This general-purpose relay from Schneider is a versatile and reliable component for a wide range of applications. With a 15 A current rating and 11-pin Faston connector, it can handle high-power switching tasks. The relay features a square base shape and 3PDT contact form, making it suitable for use in various industrial and commercial settings. Its LED indicator and mechanical flag provide visual confirmation of the relay's status. The relay's compact design and high current rating make it ideal for use in applications such as motor control, lighting systems, and HVAC equipment.
Top product features:
- Square base shape allows for easy mounting and installation
- Faston terminal connections enable quick and secure electrical connections
- LED indicator and mechanical flag provide visual and tactile status feedback
Top product applications:
- Home automation systems
- Industrial control panels
- Motor control circuits
General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.80
- Package Height: 1.50
- Package Weight: 0.19
