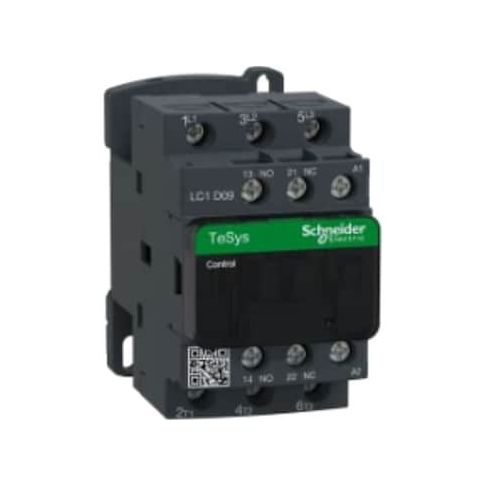

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09G7

• The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing coil-operated switch rated for use in motor control and resistive load applications within specified parameters. It uses screw clamp terminals and features 1 normally open and 1 normally closed auxiliary contact (2 auxiliary contacts total). The unit is part of the TeSys Deca series, compatible with IEC-standard control panels, suitable for DIN rail or plate mounting as per specifications, and includes a protective cover

• it does not include an enclosure or an embedded surge suppressor.

  - Poles: 3

• - Main contacts: 3 NO
• - Auxiliary contacts: 2 (1 NO / 1 NC)
• - Coil voltage: 120 V AC
• - Reversing: Non-Reversing
• - Series/Frame: TeSys Deca / TeSys
• - Mounting: DIN Rail, Plate
• - Electrical connection: Screw Clamp
• - Max voltage: 690 V AC
• 300 V DC within specified limits
• - Frequency: 50/60 Hz
• - IP rating: IP20
• - Enclosure: No Enclosure
• - Protective cover: Yes
• - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
• - Application: Intended for use in motor control and resistive load applications according to manufacturer specifications
• - Weight: 0.32 kg
• - Dimensions (approx.): Width 1.77 in, Height 3.03 in, Depth 3.38 in
• - Fire rating: UL 94 V1
• - Environmental traits: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
• - Built-in suppressor: does not include a built-in surge suppression device
• compatibility with external suppressors should be verified separately
• - Impulse withstand: rated for impulse withstand voltage of 6 kV under test conditions specified by standards
• - Hold/Inrush VA: Hold VA 7.5 VA
• Inrush VA 70 VA
• - Operating speed/time: 3600 cycles per hr
• 12–22 ms (Closing), 4–19 ms (Opening)
• - Mechanical durability: 15 Mcycles
• - Electrical durability: 2,000,000 (and 600,000) cycles indicated
• - Working temperature range: rated for operation within the specified temperature range of -40°F to 140°F (approx. -40°C to 60°C)
• - Shock/Vibration: tested according to applicable standards for shock and vibration levels
• actual performance may vary based on application conditions
• - Auxiliary/Signalling: Includes Auxiliary Contacts
• Signalling circuit frequency 25–400 Hz
• - Impedance: 2.5 mΩ
• - Rated making capacity: 250 A @ 440 V (Power Circuit), 140 A (AC Signalling), 250 A (DC Signalling)
• - Rated short-time withstand current: multiple values listed (e.g., 105–140 A depending on circuit)
