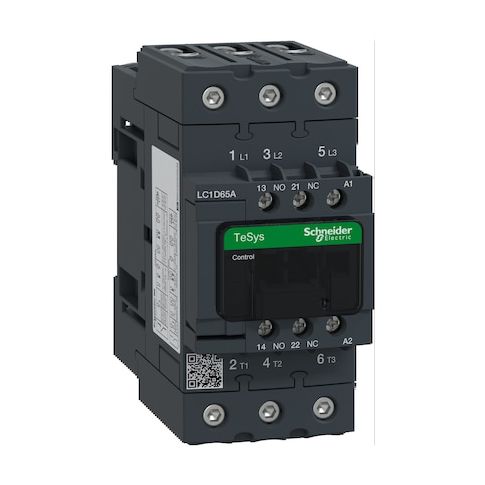

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D65AG7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device for motor control and resistive loads. Its non-reversing action and 3-pole design make it ideal for applications requiring precise control. With a 120V AC coil and screw clamp terminals, it's easy to install and integrate into existing systems. The TeSys Deca contactor provides a high level of durability, with mechanical cycles exceeding 6 million and electrical endurance meeting typical operational expectations. Suitable for use in a range of industries, including manufacturing, HVAC, and more, this contactor offers a reliable solution for controlling and protecting electrical systems.
Top product features:
- The Schneider Electric IEC Magnetic Contactor has 3 main normally-open contacts.
- It features 1NO/1NC auxiliary contacts for additional control functionality.
- It has a screw clamp terminal design for easy electrical connection.
Top product applications:
- Motor Control
- Resistive Load
- Motor Control and Resistive Loads
The Schneider Electric IEC Magnetic Contactor, TeSys Deca, is a 3-pole, non-reversing, coil-operated switching device rated for operation within IEC standards. It features 3 main normally-open contacts and 2 auxiliary contacts (1NO/1NC), with a 120 V AC coil and screw clamp terminals. Mounted on DIN rail or plate, it has an open design with IP20 protection rating and is rated for use with motor control and resistive loads at 50/60 Hz within specified voltage ranges up to 690 V AC.
Key features
- - Action: Non-Reversing
- - Application: Motor Control, Resistive Load
- - Poles/Main Contacts: 3 poles
- 3 NO main contacts
- - Auxiliary Contacts: 1NO/1NC (2 total)
- Includes Auxiliary Contacts: Yes
- - Coil Voltage: 120 V AC
- - Electrical Connection: Screw Clamp Terminals
- - Mounting: DIN Rail, Plate
- Mounts On: Plate, Rail
- - Enclosure/IP: Has an open design with IP20 protection rating
- - Maximum/Insulation Voltage: Rated for operation up to 690 V AC within specified parameters
- 600/690 V insulation
- - Frequency: 50/60 Hz
- - Series/Frame: TeSys Deca (TeSys)
- - Weight/Dimensions: 0.86 kg
- Depth 4.72 in
- Height 4.8 in
- Width 2.17 in
- - Durability: Mechanical durability approximately 6 million cycles
- Electrical endurance within typical operational expectations
- - Inrush/Standards: Conforms to listed standards including UL, EN, CCC, CSA, GOST, IEC as applicable
- - Included/Extras: Everlink Power Connections
- Protective Cover: Yes
- - Other: Embedded Surge Suppressor: No
- Phase: Three
- Maximum Operating Temperature: 140°F
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.40
- Package Height: 2.50
- Package Weight: 2.10
