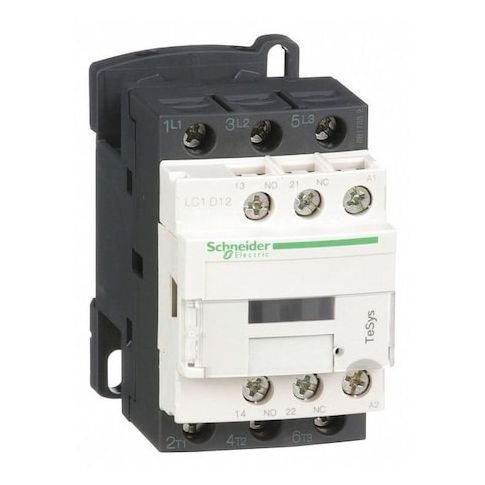

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D12B7
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient switching device designed for motor control and resistive load applications. Its 3-pole, non-reversing design ensures smooth and consistent operation, while the 24V AC coil voltage provides flexible installation options. With a maximum voltage rating of 690V AC and a rated making capacity of 250A, this contactor can handle demanding applications with ease. Suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing, this device offers improved safety, reduced downtime, and increased productivity.
Top product features:
- Non-Reversing Action
- Two auxiliary contacts (1NO/1NC)
- Screw Clamp Terminals
Top product applications:
- Motor Control Applications
- Industrial Automation and Control Systems
- Resistive Load Applications
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, coil-energized switching device (TeSys Deca) rated for operation within specified motor control and resistive load applications. It features two auxiliary contacts (1NO/1NC) and includes screw clamp terminals as specified. The unit includes a protective cover and no enclosure, compatible with DIN rail or plate mounting according to installation guidelines.
Key features
- - Coil Voltage: 24 V AC
- - Poles/Phase: 3 poles, Three-phase
- - Action: Non-Reversing (Reversing: No)
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Electrical Connection: Screw Clamp Terminals
- - Frame/Series: TeSys Deca / TeSys
- - Maximum Voltage: 690 V AC
- 300 V DC
- - Rated Making Capacity: rated for making capacity of up to 250 A at specified voltages under standard test conditions
- - Full Load Amps: rated for full load currents of inductive and resistive loads within the specified parameters
- - IP Rating / Enclosure: IP20
- No Enclosure
- - Mounting: DIN Rail, Plate
- - Dimensions: Height 3.03 in
- Width 1.77 in
- Depth 3.38 in
- - Net Weight: 0.325 kg
- - Frequency: 50/60 Hz
- - Other: Inrush VA 70 VA
- Hold VA 7 to 7.5 VA
- Impulse Withstand Voltage: tested for impulse withstand voltage up to applicable standards, but does not guarantee protection against all surge events
- Includes Protective Cover as provided by manufacturer specifications
- - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- - Operating Time: 12 to 22 ms (Closing)
- 4 to 19 ms (Opening)
- - Temperature/Durability: Max. Temperature 850°C
- Maximum Operating Temperature 140°F
- Mechanical Durability 15 Mcycles
- Electrical Durability 2,000,000 (AC-3) / 0.8 Mcycles (AC-1)
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.70
- Package Height: 2.20
- Package Weight: 0.75
