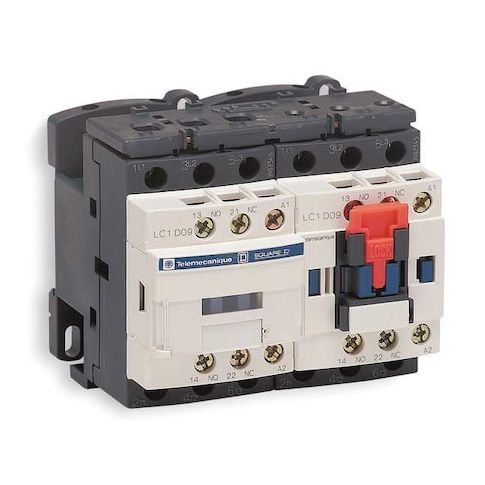

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Reversing, Screw Clamp MPN:LC2D09U7V
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a versatile 3-pole reversing device ideal for motor control and resistive load applications. Its 240V AC coil and screw clamp terminals provide reliable operation in a variety of settings. This electromagnetic switching device features interlocks and a protective cover, ensuring safe and efficient use. With a range of ratings including 30A, 61A, and 105A short-time withstand current, it can handle demanding power circuits. Suitable for use in indoor environments, this contactor is a reliable choice for applications in various industries, including manufacturing, transportation, and construction.
Top product features:
- Has 2 auxiliary contacts, one normally open (1NO) and one normally closed (1NC)
- Can be used for motor control and resistive load applications
- Features a screw clamp terminal for electrical connection
Top product applications:
- Motor Control
- Resistive Load
- Inductive Load
Schneider Electric’s IEC Magnetic Contactor is a 3-pole reversing device (Action: Reversing) with a 240 V AC coil, rated for operation within the specified application types. It functions as an electromagnetic switching device and is part of the TeSys Deca series. The unit features interlocks designed according to standard specifications and a protective cover.
- Action: Reversing
- - Application: Motor Control, Resistive Load
- - Aux Contacts: 2 (1NO/1NC)
- - Coil Voltage: 240 V AC
- - Poles: 3
- - Main Contacts: 3 normally open
- - Auxiliary Contact Configuration: 1NO/1NC
- - Contactor Style: IEC
- - Series: TeSys Deca
- - Electrical Connection: Screw Clamp Terminals
- - IP Rating: IP20
- - Enclosure: Indoor IP20 enclosure
- - Mounting: DIN Rail, Plate
- Mounts On: Plate, Rail
- - Rated Voltage: Designed for operation within specified voltage ranges
- - Rated Making Capacity: Has a rated making capacity suitable for typical load conditions within specified parameters
- - Rated Short-Time Withstand Current: 30 A (40°C 10 min Power Circuit)
- 61 A (40°C 1 min Power Circuit)
- 105 A (40°C 10 s Power Circuit)
- 210 A (40°C 1 s Power Circuit)
- 100 A (1 s Signalling Circuit)
- 120 A (500 ms Signalling Circuit)
- 140 A (100 ms Signalling Circuit)
- - Full Load Amps: Inductive 9 A
- Resistive 20 A
- - Frequency: 50/60 Hz
- - Impulse Withstand Voltage: 6 kV
- - Net Weight: 0.687 kg
- - Dimensions: Width 3.54 in
- Height 3.03 in
- Overall Depth 3.39 in
- - Environment: Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3
- - Fire Rating: UL 94 V1
- - Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed
- - Interlocks: Interlocks designed according to standard specifications
- - Protective Cover: Yes
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 3.80
- Package Height: 5.40
- Package Weight: 1.85
