Socket, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect MPN:8501RS41V20
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0596136

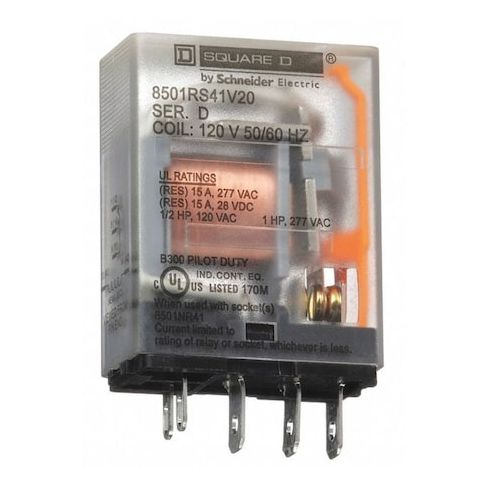

Socket, General Purpose Relay, Square, 15 A, 5 Pins, Quick Connect
The Schneider General Purpose Relay is a reliable and efficient solution for a wide range of applications. This square-shaped relay is designed for use in various electrical systems, including control circuits, lighting control, and HVAC systems. With a 15A current rating and quick-connect terminals, it provides fast and easy connections. The relay's SPDT contact form and mechanical flag status indicator ensure precise control and monitoring. Suitable for use in residential, commercial, and industrial settings, this relay is ideal for applications requiring reliable and efficient switching and control. Its compact design and easy installation make it a valuable addition to any electrical system.
Top product features:
- It has a SPDT contact form that allows for simple on/off switching.
- It is designed with a quick-connect feature for easy electrical connection.
- It includes a mechanical flag status indicator for easy monitoring of relay status.
Top product applications:
- Industrial Control Systems
- Automation and Robotics
- Power Distribution and Control Panels
General Purpose Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.189 in, Number of Pins 5, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 120V, 15 A @ 277V, Contact Rating (DC) 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/10 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.07 in, Body Height 1.37 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.30
- Package Height: 1.10
- Package Weight: 0.06
Product info last updated on January 15, 2026 7:58am UTC
Category: Industrial Electrical Controls and Automation
