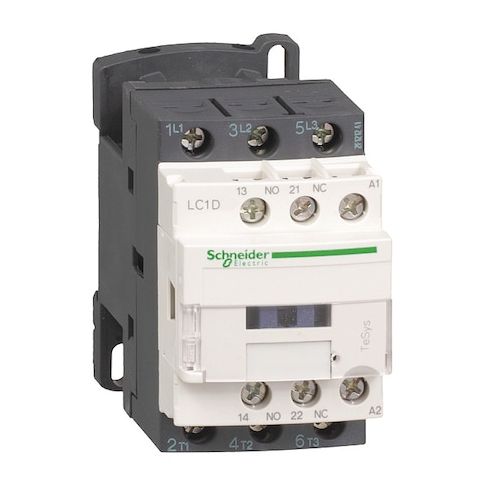

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw Clamp MPN:LC1D09P7

• IEC Magnetic Contactor for motor control and resistive loads. This 3-pole, non-reversing device uses a 230 V AC coil and provides 1NC/1NO auxiliary contacts. It features screw clamp terminals and mounting for plate or rail, and is part of the LC1D series. A protective cover is included, and the unit carries an IP20 enclosure rating and UL 94 V1 fire rating.

  Key features:

  • - Application: The product is rated for operation within specified parameters
  • actual suitability should be verified based on application conditions.
  • - Poles: 3
  • - Auxiliary contacts: 1NC/1NO
  • - Coil voltage: 230 V AC
  • - Reversing capability: Non-Reversing
  • - Electrical connection: Screw Clamp Terminals
  • - Mounting: Plate, Rail
  • - Series: LC1D
  • - Protective cover: Included
  • - IP rating: The enclosure provides an ingress protection rating of IP20 as per standard specifications
  • actual environmental suitability should be confirmed before use in specific conditions.
  • - Fire rating: The material meets UL 94 V1 flammability standards
  • this does not imply any safety certification beyond that specification.
  • - Dimensions (D × H × W): 86 mm × 77 mm × 45 mm
  • - Net weight: 0.32 kg
  • - Rated voltage: The rated voltages specify maximum electrical ratings
  • compatibility with specific circuits should be verified to ensure proper operation within these limits.
  • - Rated making capacity: The current capacities are based on standardized testing conditions
  • actual performance may vary depending on installation specifics.
  • - Full load current: These values indicate typical full load currents under specified test conditions but do not guarantee safe operation at these levels without proper circuit design.
  • - Non-overlap time: 1.5 ms
